CE 200kg/h Single Screw Food Extruder Pasta Macaroni Making

Ask Lasest Price
Brand Name :	SMART
Model Number :	SRd-110
Certification :	CE ISO
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100 sets/year
Delivery Time :	35-45 days

Add to Cart

Product Details
Company Profile

CE 200kg/h Single Screw Food Extruder Pasta Macaroni Making

China Single-Screw Extruder Pasta Macaroni Making Machine With CE

200kg/h Single-Screw Extruder Pasta Macaroni Making Machine

Introduction of Pasta Macaroni making machine:

Extruder

1. Feeding System:Installed in the main machine, which feeds materials spirally, and the quantity can be adjusted. This system includes engine, screw, blender and machine shelf.
2. Extruding System:Adopts the crafts what can make the materials ripe in the low temperature by blending, cutting and extruding. Temperature control is set strictly on the roller and screw to reach criteria the materials require.
3. Cutting System:The shelf is fixed on the head of the moulds; and turns and cuts the materials motivated by the belt wheel.
4. Heating System:Divides five areas, and the heating temperature of which can be adjusted separately.
5. Transmitting System:The motive power from the main engine is transmitted to the screw through the triangle belt and decelerator.
6. Controlling System:Can control all the components of the main machine centrally.
7. Vacuum Pump.For the pasta and macaroni,the big problem is with bubbles and air inside.With the vacuum pump,which can extract air from feeding part,so there will be no any air and bubbles inside the pasta and macaroni,it will not easy broken and taste also very strong and good.

NO.	Name	Brief introduction
1	Raw material	Wheat flour, Potato starch, potato powder and corn starch
2	Basic Recipe	Grist powder; additives; water
3	Equipment involved	Mixer; Screw elevator; Single screw extruder; Vibrator; Roller dryer; Cooler oven; Recycling dryer
4	Final products	Variety shapes are available for crisp pea, shell, screw, tube, square tube, round tube and wave shape by adjusting the mould in the extruder ;
5	Machine material	Stainless steel 304 or as customer’s request

Spefication of Pasta Extruding Machine:

Raw materials:

wheat flour, corn flour etc as raw materials

Products:

This industrial pasta making machine/line/plant/industry pasta making machine/macaroni pasta making machine/pasta production line can be used to produce Shell, spiral, square tube, circle tube shapes

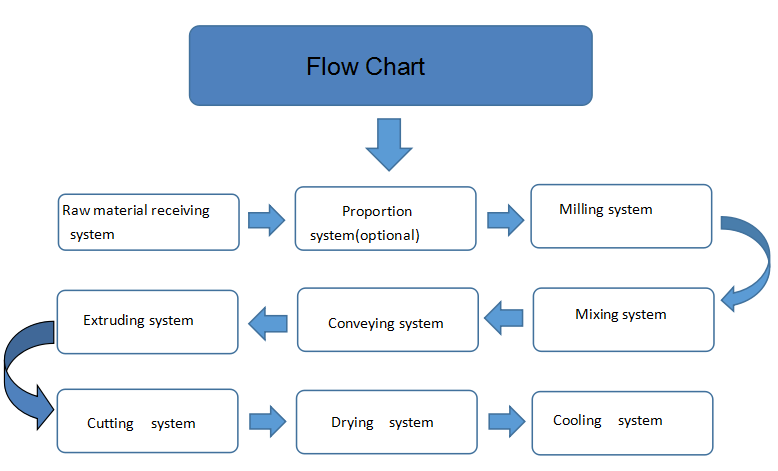

Flow chart:

Mixing system---Extrusion system----Cutting system---Drying system---Cooling system--Packing system

Mould of pasta machine

Samples:

Technical Parameter of pasta machine:

Model	Install Power	Real Power	Capacity	Dimension
SR 110	105kw	73kw	120-150kg/h	222.03.0
SR 150	190kw	135kw	250-300kg/h	302.03.0
SR 160	250kw	175kw	350-400kg/h	352.54.2

Production flow:

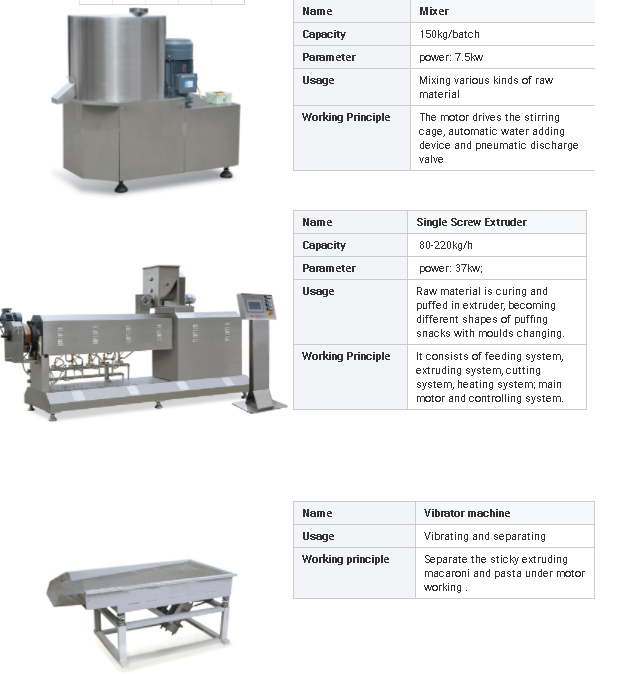

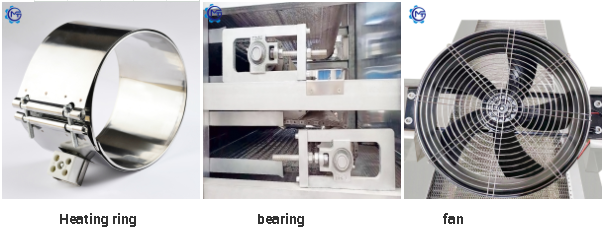

Machine parts:

Machine package and delivery:

1.Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finally pack them with wooden case.

2.Customer's special packing requirement is available.

Under the different molds of the single-screw extruder, products of different shapes are produced, customized according to the customer's local market

Any interest, please be free to send us inquiry!
