Stainless Steel Puff Maize Corn Snack Production Line Machines
Introduction of Stainless Steel Puff Maize Corn Snack Production
Line Machines:

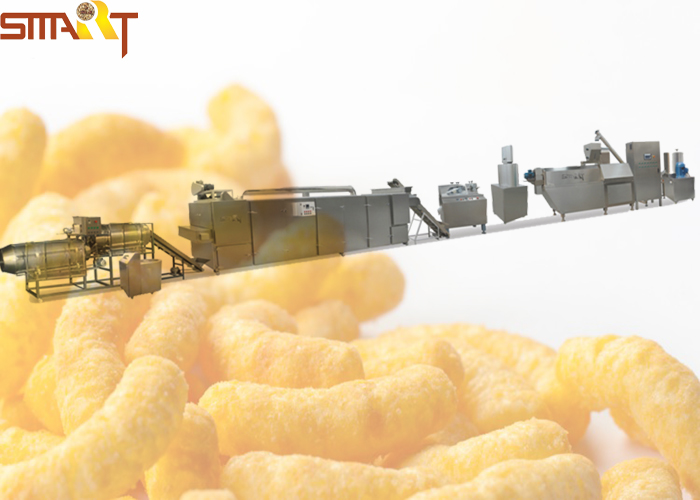

The corn snack production line is fully automated from mixing,
extruding, core filling, shaping, cutting, drying, flavoring to
finish products. The production line has features of flexible
collocation,extensive applied raw materials,various snacks and easy
operation.
The puffed snacks production line cam make variety shapes by
adjusting the mould in the extruder, such as ball, tube, stick,
ring, fruit loop, star, wheel and flower and heart shape.
The corn snacks extruding machine products:
By changing the moulds and process technology, this line can
produce core-filled snacks, such as chocolate filled bar, cream
filled pillow, rice cake, cereal bar, sheet snacks, etc.
2. Puffed rice food extruder puff corn snack machine Main Features:
1. Various models to meet different output capacity requirements.
2. Flexible configurations to meet different produce, budget and
workshop layout requirement.
3. Vast raw material range to produce different final products by
only one production line.
4. Different shapes and appearances of final products can be made
by changing different modules in extruder.
5. High automation and accurate control system to save labor cost
and improve the quality of final products.
3. Puffed rice food extruder puff corn snack machine Products:
Mixing system---Extrusion system----Drying system----Flavoring
system--Packing system
Technical Parameters:
| Model | Power(KW) | Capacity(KG/H) | Dimension |
| SR- 65 | 70 | 120-150 | 21000x1200x2200mm |
| SR-70 | 90 | 200-240 | 23000x1500x2200mm |
| SR-85 | 120 | 450-500 | 28000x3500x4 |
Introduction of detail corn chips line equipments:
Name & Parameters | Description | Picture |
Flour Mixer
Output: 50kg/load Tank Size: φ590 x 890mm Power: 4kw Dimension: 1100 x 700 x 1200mm | Flour Mixer is used to mix the raw material, like corn flour, rice
flour, fish bone flour, ox bone flour with liquid and other
additives.
|
|
Screw Conveyor
Driving Power: 2.2kw Vibrating Power: 0.03kw Dimension: 2900 x 1000 x 3100mm | Screw Conveyor is used to the convey the materials to the feeder of
the extruder.
|
|
SR-70 Double-screw Extruder
Output: 200-250kg/hr Dimension: 4000 x 900 x 2700mm
| Double Screw Extruder serves to gelatinize flours and starches
continuously and automatically. After dosing, the materials are
worked by two co-rotating screws composed by sectional modules for
the following functions: forward and backward transport, mixing,
de-gassing, cooking and forming.
|
|
Big Hoist
Power: 0.37kw Rotary speed: 85rpm Weight: 200kg Dimension: 2500 x 800 x 2500mm | Big Hoist is a conveyor, which is used to convey the raw materials
to next equipment.
|
|
Five-Layer Roaster
Driving Power: 3.75kw Fan Power: 2.2kw x 2 = 4.4kw Roaster Dimension: 5300 x 1100 x 2300mm Electric Cabinet Dimension: 600 x 340 x 1220mm
| Five-Layer Roaster is used to dry a wide range of products, such as
puff snacks, corn flakes, core filling food, etc.
|
|
Flavoring System
Coating Drum: Drum Driving Power: 1.1kw First Drum Size: φ600 x 1500mm Second Drum Size: φ600 x 1800mm
| Flavoring System is used to spray the flavor powder and oil onto
snacks evenly.
|
|
LQX-5 Cooing conveyer
Driven power: 0.37kw Fan power: 0.24kw Dimension: 5000 x 800 x 1200mm Weight: 200kg | LQX-5 Cooling conveyer is used to cool the pet snacks after
cutting.
|
|
Packing Machine Packing Speed: 10-60pcs/min Bag Length: 50-300mm Bag Width:60-200mm Power:6KW Dimension: 4076 x 4045 x 3500mm Weight:1730KG |
Many kinds of compound film can be used, like BOPP/CPP, OPP/VMCPP.
BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET, etc;
|
|
Our company has already exported countries:
Asia {Thailand, Indonesia, East Timor, South Korea, India,
Bangladesh, Saudi Arabic, Turkey, Iraq, Israel, Kazakhstan,
Tajikistan, Uzbekistan, Turkmenistan, Pakistan, Nepal}
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia,
Uganda, Zimbabwe, Burkina Faso, Malawi}
Europe { Russia, Bulgaria, Ukraine, Sweden }
North & South America { America, Canada, Brazil, Bolivia }
Oceania { New Zealand }
Corn chips machine test video:
Any interest, please be free to contact us!
