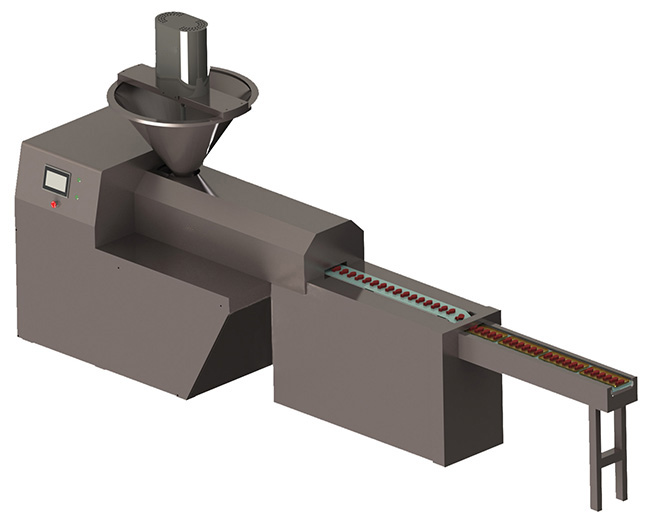

Pet Chew Dog Treats Extrusion Machine
Introduction of Pet Chew Dog Treats Extrusion Machine:
Hot Sale dog chewing food extruding machine can make dog chewing
food which uses different kinds of materials with scientific
configuration and extrusion in the extruder.
Pet snacks can be made into a variety of shapes such as stick,
bone, etc.
Production Line For Producing Pet Food /dog Chew Snack /pet Treats
Food Machines not only provides nutrition to dogs, like protein,
fat, vitamin, etc, but also satisfies the dog nature hobby,
benefits its strong teeth, cleans mouth and teeth, and prevents
disease.
Production Line For Producing Pet Food /dog Chew Snack /pet Treats
Food Machines is a new innovation of our engineers. It can produce
pet treats food like strip shape, stick shape, twisted stick shape,
double colors andmulti-colors core filled snack. Pets can absorb
nutrition elements during enjoy chewing these delicious snacks.
Raw materials: Pet Treats /dog Chews Food Processing Equipment adopts corn
starch, potato starch, animal meat, rawhide, etc as raw materials.
Products: twist, double colors, core-filling pet treats and so on.
Capacity: 300-500kg/h
Flow chart: Mixing system---Extrusion system--cutting system--Drying
system--Packing system
Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it
according to customers Local voltage according to different
countries.
Machines materials: All the machines are made by stainless steel,
dog chewing food machine is with reasonable design and with high
automation; the screws are made by alloy steel, with building block
system structure and self-cleaning function.
Brief Introduction of Pet Chew Dog Treats Extrusion Machine:
| No | Name | Brief introduction |
| 1 | Raw material | corn starch, potato starch, animal meat, rawhide, etc |
| 2 | Basic Recipe | Meat, protein, Edible Glue, humectants |
| 3 | Processing flow | Mixing system; Extrusion system; cooling system; Cutting system;
Multi-layer cooling system; Packing system |
| 4 | Equipment involved | Mixer; Single screw extruder; Cooling conveyor; Cutter; Hoister;
Multi-layer cooling machine |
| 5 | Final products | Twisted dog chewing snack food |
| 6 | Machine material | Stainless steel 304 or as customer’s request |
Technical parameter:
| Model | SR-126 |
| Capacity | 100kg/hr |
| Hopper volume | 65L |
| Screw diameter | 126mm |
| Power | 22kw |
| Cooling type | Water circulation |
| Heating | No |
| Cylinder pressure | 0.4-0.5Mpa (no more than 0.6Mpa, and cylinder should be changed
every 2-3 months) |
| Dimension | 4300*900*2000mm |
Pet Chew Dog Treats Extrusion Machine details :

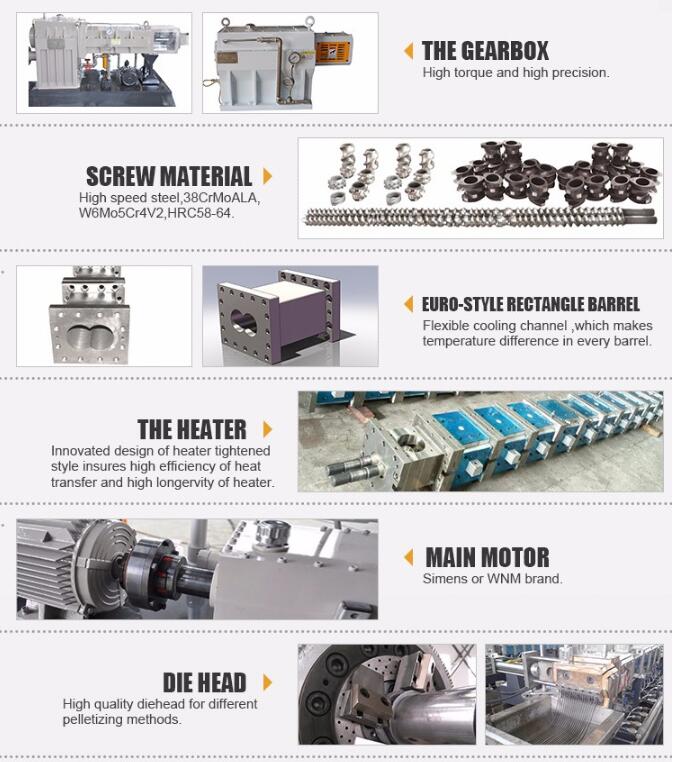

All machine parts we use high quality parts from famous brands :
The production flow:
Mixing materials - Forming treats - Baking or Drying
Samples of the Pet Chew Dog Treats Extrusion Machine:
More details and price ,please contact us freely!
