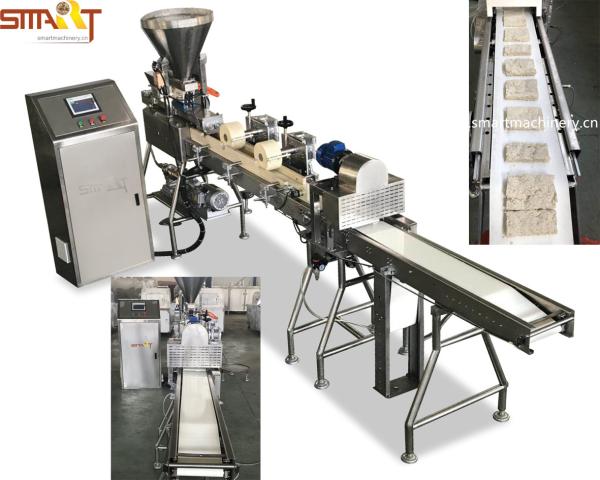

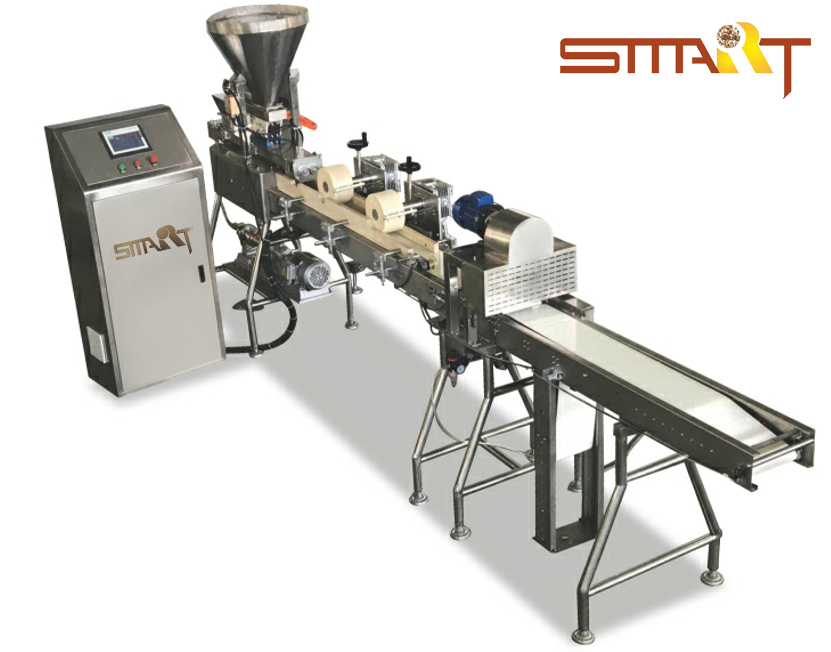

New Design Mini Bar Making Machine To Do Muesli Bar Cutting Machine

Introduction:

Ø Mini cereal bar machine uses HMWHDPE belt. This belt have the feature of anti-sticking, better tenacity and not easy to damage.

Ø The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.

Ø The useful width of cereal bar cutting machine is 170mm.

Ø Controlled by PLC with touch screen with friendly interface.

Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.

Technical Parameter:

Output: 40-60pcs/min

Power: 5.5kw

Material Hopper Size:

540 x 450 x 350mm

Hopper Volume:30L

Conveying Belt Width: 180mm

Weight: 500kg

Dimension:

3000 x 600 x 1500mm

Main Features

1. Compact mechanical structure design, double inverter control, stable running, easy repair and maintenance, less breakdown and low noise.

2. With superb intelligent touch screen and individual digital display temperature control system, it is simple to set parameters and convenient to change product size.

3. Brand color code photo sensor tracking system is available to ensure accurate sealing, cutting position and high control accuracy.

4. Rational electrical design for simple control, improving stability.

5. Simplified mechanical structure design for simple adjustment, improving production efficiency.
