1. Motors are from WEG, which has 3-year world-wide guarantee or
Siemens motor;
2. Electric parts are from ABB or Schneider, easy to find
replacments at local market;
3. PLC and touch screen are from Siemens, Germany to realize easier
operation and less labor quantity;
4. PLC and touch scrren controls whole processing line, not one or
two single equipment;
5. While faults occurred, relevant information will be displayed on
touch screen, easy to settle the problem;
6. Control cabinet has 24V safe voltage (not 220V), which could
protect the operator even electric leakage occurred;
7. Three kinds of protectors to keep machine and operator safe:
over-current protector, over-voltage protector and over-heat
protector;
8. All the cover body, mesh belt and parts touching with materials
or final products are made by stainless steel 304.
1. Introduction:
Corn Flakes Extruder through the treatment of flakes of grain,
served with milk and marshmallows, were a very popular food among
the families.
Variety shapes are available for ball, tube, stick, ring, fruit
loop, star, wheel and flower and heart shape by adjusting the mould
in the extruder.
2. Features:
Corn Flakes Extruder has the advantage of rational design, high
automatic degree and accuracy control.
(2).The main body material is stainless steel, which is easy to be
cleaned.
(3).The screws material is 38CrMnAl, which is wear-resisting.
(4).Our project is turn-key. We will send our engineer to your
factory, install and debug the equipments, and train your
operators.
(5).The temperature and rotating speed can be controlled and
adjusted.
3. Capacity: 150kg/hr and 300kg/hr
4. Flow chart:
Mixing system---Extrusion system---- -Drying system----Flavoring
system---Packing system
5. Voltage: In China Three phases : 380V/50Hz, Single phase: 220V/50Hz, we can
make it according to customers’ local voltage according to
different countries
6.The biggest advantage: the screw can self-clean automatically.

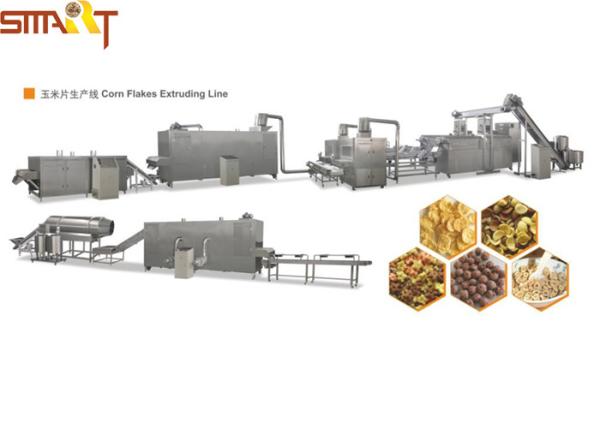

7. Machine Photo:
9.Our Services:
* Related machines’s technical parameter will be supplied to
customer.
* According to customer’s factory size, factory layout can be
provided in advance.
* According to customer’s material cost, general formulation can be
prepared well.
* Special machine can be supplied as customer’s request.
* Professional Advice about Market, machines, processing ,
materials, packing can be supplied
* Suggesting professional ship agent or helping book ship as
customer request.
Videos:
Smart Plant:
https://youtu.be/gBHm04wNJA0
Working video for corn flakes machine:
For more detaila and price, please send us inquiry for quotation!
