1.Corn Flakes Extruder Machine efficiently produce a vast range of
cereal flakes that meet an evolving demand for consumption at
breakfast or snack.
Corn Flakes Extruder Machine is simpler and more cost effective
compared with batch cooking systems traditionally used for flakes
manufacturing.
2. Corn Flakes Extruder Machine is at the core of this very
flexible and scalable process.
This technology is ideal to meet the market demands and breakfast
cereal manufacturing;
Many raw materials are eligible with coating recipes such as sweet
syrups, honey, chocolate and other compositions.
3. Flakes and loops are the great classical breakfast food and have
been adopted by a majority of consumers around the world.
Corn Flakes Extruder Machine allow to process a vast range of
recipes adapted to all tastes and needs.
4. Flakes are either consumed plain or coated with a variety of
sugars, malted ingredients, honey, fruit flavors, chocolate, etc.
“Corn flakes” are the most famous variety but many other cereals
can be used such as wheat, rice, oats, barley, rye, buckwheat. A
new variety of “multigrain” or “multicereals” flakes made with a
mix of visible cereals inclusions became very popular.
To meet the increasing demand for healthy cereals, whole grain or
grains enriched with fibers, vitamins, minerals and other nutrients
are also used.

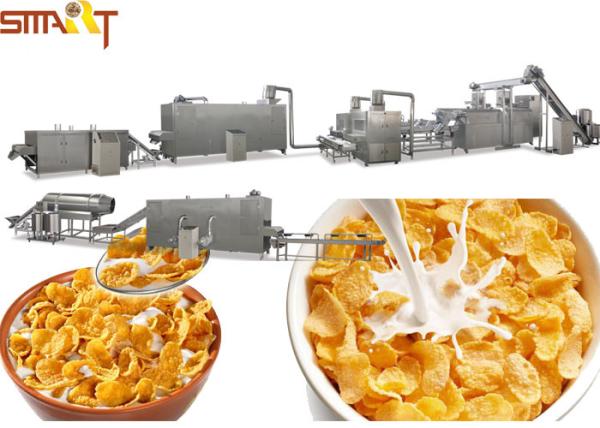

Production line details
| Capacity | 120kg-320kg |
| Power Supply | Based on 380V 50 Hz 3 phase.
Customized according to your local power. |
| Machine details | 1.Stainless steel, on request
2. Electric parts can be ABB or Schneider.
Famous brand as your demand. |
| Certificate | |
| Raw Material | Corn flour, wheat flour, Multigrain flour, Cocoa ,etc. |
|
| Product type | Plain or coated.
Such as: Corn flakes, Cocoa flakes, Froot Loops, Frosted flakes
etc. |
| Coating recipes | Sugars, honey, fruit flavors, chocolate, etc. |
Advantages
1.The screw material: Alloy steel (38CrMoAL) by nitriding process.
High strength and wear-resting.
With good self-cleaning ability, it’s unnecessary to remove the
barrel and screws for cleaning.
2.SIMENS Motor
3.It adopts speed-adjusted converter on feeding system, extrusion
system and cutting system.
Food grade stainless steel twin screw feeding device guarantees
stable materials feeding in the whole food process.
4.Adopted the Delta inverters, ensure the extruder better running.
5.The gearbox has automatic lubrication function, which prolong
service life of gears.
6.Cutting knife is fixed in the die head seat, rotary cutting
driven by V-belt.
Production process
Mixing Raw material -----Extruding----Pressing
flakes-----Pre-drying----Drying----Coating----Drying----Cooling----Packing
9.Our Services:
* Related machines’s technical parameter will be supplied to
customer.
* According to customer’s factory size, factory layout can be
provided in advance.
* According to customer’s material cost, general formulation can be
prepared well.
* Special machine can be supplied as customer’s request.
* Professional Advice about Market, machines, processing ,
materials, packing can be supplied
* Suggesting professional ship agent or helping book ship as
customer request.
