CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker

    Buy cheap CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker from wholesalers

    Buy cheap CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker from wholesalers
    • Buy cheap CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker from wholesalers
    • Buy cheap CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker from wholesalers
    • Buy cheap CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker from wholesalers

    CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker

    Ask Lasest Price
    Brand Name : SMART
    Model Number : SRT-65
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    CE Certificated Auto Meat Strip Traying System Meat Patty Jerky Snack Stick Maker


    Meat Patty, Jerky, Snack Stick Maker


    Introduction

    Auto Meat Strips Processing Line is latest design of Smart, which could produce pet snacks, suitable for pet food without casing directly baked meat and meat products, widely used in pet food article beef, article chicken, beef rod, chicken rod production and processing.

    ☆ It is first processing line to produce meat snacks automatically and continuously.

    ☆ The diameter and shape of meat strips can be various by changing the molds.

    ☆ Fully controlled by PLC and touch screen to reduce the labor cost, 2-3 workers are
    needed to operate the whole line.

    ☆ The characteristics is discharging speed, output evenly, can infuse bowel flesh lump,
    can also be used to fill the mi bowel, flexible, convenient and free loading, high
    efficiency, continuous production capacity, and cleaning convenient, suitable for
    various types of production enterprises.

    ☆ The equipment is made from high quality 304 stainless steel, corrosion resistance,
    with high quality in intensity, reliable and durable, convenient cleaning, adopt gear
    two-way extrusion type structure, with high pressure, rotation smoothly.

    ☆ Equipped with Auto Tray Loading System to feed the tray to load the meat strip
    automatically.

    ☆ Safely cutting system to ensure the worker's safety, also same size of meat strips.


    Technical details


    Power Supply: 380v, 50hz

    Air Source: 0.5-0.8Mpa

    Air Comsumption: 95L/min

    Tray Dimension: 680X400mm

    Quantity of Placing Tray One Time: 40pcs

    Power: 3.75kw

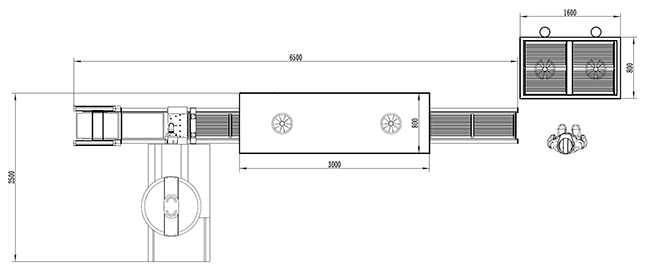

    Overall Dimension: 9000X2900X1610mm (L*W*H)

    Machine Weight: 680kg


    Machine details and samples:





    Shandong Smart Machinery Co., Ltd is a professional food machinery manufacturer located in Jinan, China.
    Relying on our own R&D advantages, we can achieve high quality, easy operation machines both for human food and pet food industries.

    We always test the machine before packing.

    Our Services:

    * Related machines’s technical parameter will be supplied to customer.
    * According to customer’s factory size, factory layout can be provided in advance.
    * According to customer’s material cost, general formulation can be prepared well.
    * Special machine can be supplied as customer’s request.
    * Professional Advice about Market, machines, processing , materials, packing can be supplied
    * Suggesting professional ship agent or helping book ship as customer request.


    Video check:

    SMART plant:




    Working video for meat strips extruding line:



    More details and price ,please contact us freely!
