    CE Certificated Dog Treats Automatic Injection Moulding Machine High Effency

    Ask Lasest Price
    Brand Name : Smart
    Model Number : SR series
    Certification : ISO CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets/month
    Delivery Time : 35-40 working days
    • Product Details
    • Company Profile

    CE Certificated Dog Treats Automatic Injection Moulding Machine High Effency


    Injection Molding Pet Treat Machine

    Instruction of the injection molding machine

    Dental chew bone injection molding machine is the essential equipment to make dental chews/pet treats/dog snacks.
    Smart as the professional manufacturer of pet food machines, also supply cold extrusion pet treat machine, auto meat strip forming machine,meat strip machine, pet treat machine, pet treats molding machine, dog treat molding machine, pet treat molding machine, dog chewing bone molding machine.
    Pet treats injected molding machine is special machinery for producing pet snacks. with such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
    The shapes of pet treats are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. also, we can provide different recipes to meet various market demands.

    a. Raw Materials: adopts corn flour, fish meal and so on as raw materials.
    b. Products: different shapes are made by adjusting the dies from extruder.
    c. Flow chart:
    Mixing system---Extrusion system---Injection system---Molding system---Packing system
    d. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
    e. Machines Materials: All the Pet treats molding machine are made by stainless steel, this line is with reasonable design and with high automation


    Parameter:

    ItemName of itemUnitDM-268
    Injection UnitScrew Diametermm55
    Screw L/D RatioRatio20
    Injection Volume (Theoretical)cm601
    Injection Weight (PS)g548
    Injection PressureMpa185.1
    Injection Rate into Airg/s223.7/276.1
    Injection Strokemm256
    Injection SpeedMm/s95/116
    Screw Speedrpm201/246
    Clamping UnitClamping ForceKN2600
    Clamping Strokemm550
    Space Between Tie-barsmm*mm580 * 580
    Max. Mould Heightmm600
    Min. Mould Heightmm250
    Ejector Strokemm160
    Hydraulic EjectionKN68
    Ejector Rob Quantitypcs9
    OthersMax. Pump PressureMpa17.5
    Pump Motor Powerkw22/30
    Heater Powerkw15.9
    Hopper VolumeL50
    Oil Pump VolumeL550
    Machine Weightt8.5
    Mould Positioning Ring Diammm160
    Sphere RadiusmmSR10
    Machine Dimensionm *m * m5.82 *2 * 2

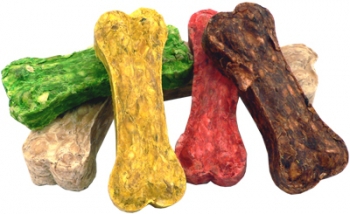

    Samples By Our Pet treats molding machine
    Our Pet treats molding machine can make pet chews with various shapes and tastes through changing the dies and formulas
    We have full formula of foods and will guide you to use different materials to produce variety quality food.
    Strong Packing for Pet treats molding machine
    Packed by standard wooden case or wrapped by plastic film then shipped by container for Pet treats molding machine .

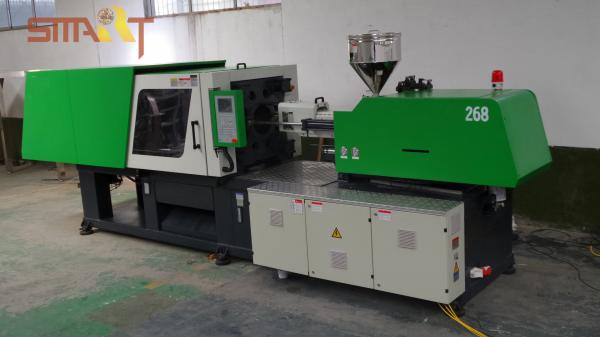

    Machine and sample pictures:






    Video:

    Smart plant:



    Working video:


    More details and price ,please contact us FREELY
