    4000pcs / H Small Capacity Granola Bar Press Machine Energy Bar Production Line

    Ask Lasest Price
    Brand Name : SMART
    Model Number : Mini 65
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets/month
    Delivery Time : 25-35 days
    • Product Details
    • Company Profile

    4000pcs / H Small Capacity Granola Bar Press Machine Energy Bar Production Line

    Small Capacity Granola Bar Energy Bar Production Line


    Introduction of the energy bar machine:


    Mini Granola Bar Former can be used for producing rectangular shape cereal bar.

    1. The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.

    2. The useful width of cereal bar cutting machine is 170mm.

    3. Controlled by PLC with touch screen with friendly interface.

    4. Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.

    Raw Material
    A wide range of ingredients can be used as raw material, like oats, pop rice, peanuts, sesame, raisins etc. The binder can be sugar syrup, dates paste, honey etc.

    Shape
    The bar shape is rectangular by pressing and cutting. The size is adjustable.

    Support Machinery
    Support machinery can also be provided to work with the bar former to be automatic line, like sugar melting cooking pan, chocolate coating, auto-sorting and packing machine.


    Technical parameter for the mini snack bar former:


    Output

    40-60pcs/min

    Power

    2.2kw

    Material Hopper Size

    540 x 450 x 350mm

    Hopper Volume

    8L

    Conveying Belt Width

    180MM

    Product width

    30-150mm

    Product thickness

    10-30mm

    Weight

    500kg

    Dimension

    3000 x 600 x 1500mm


    Notice: the sugar boiler& Auto-sorting and packing machine is optional equips, customer can choose as production requirements.


    Machine detail picture:

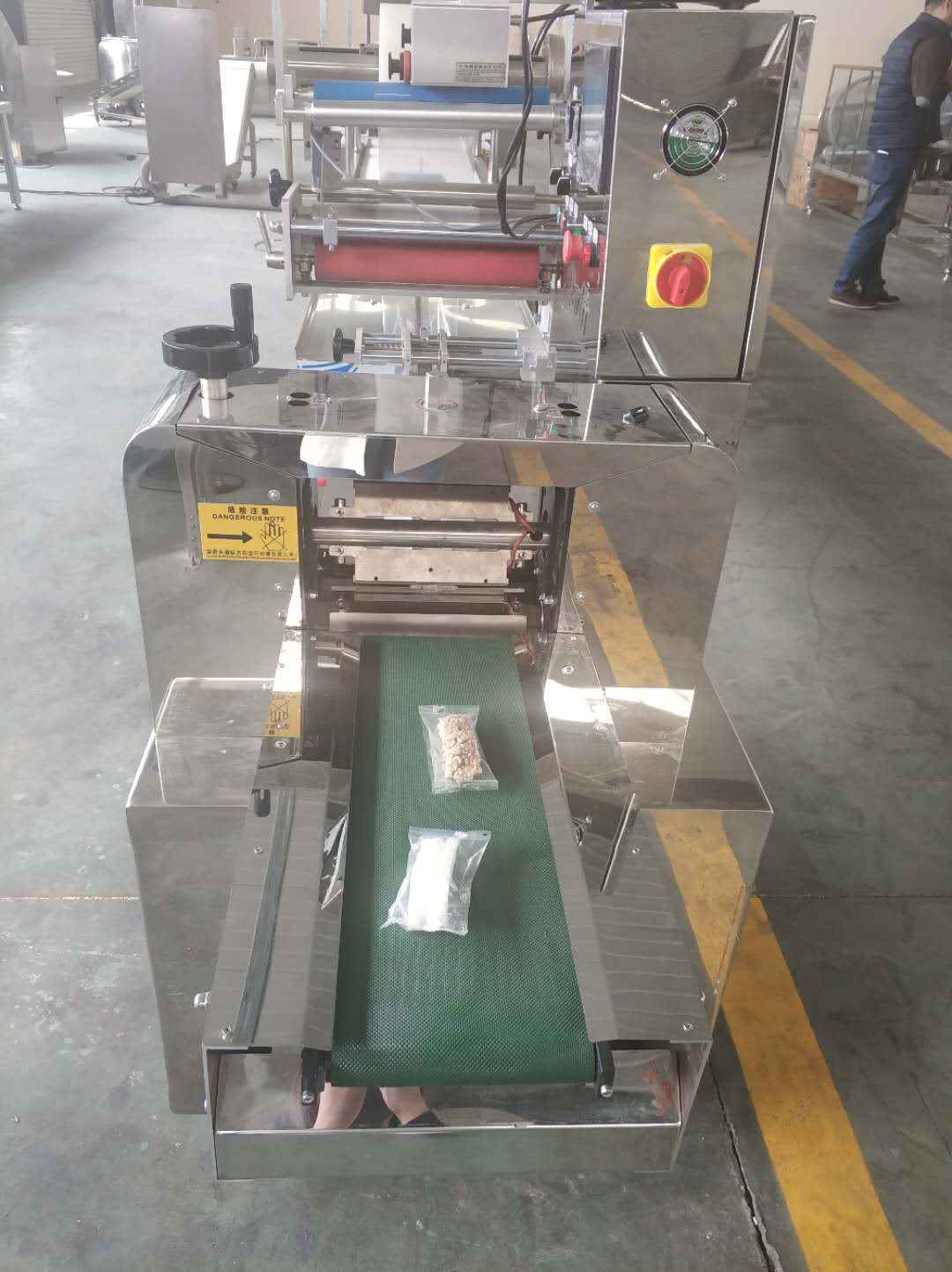

    Packing machine picture:

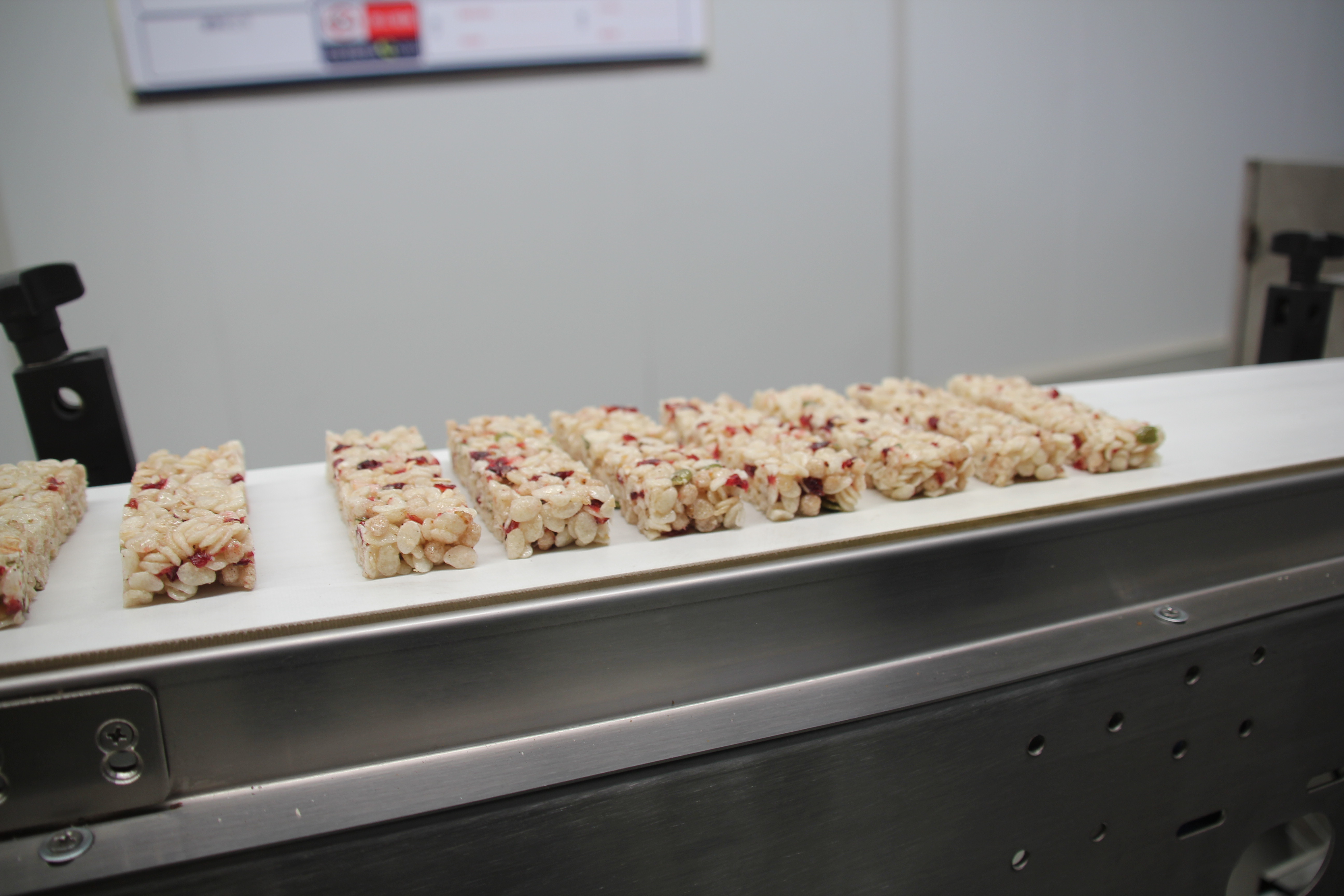

    Sample picture:


    Only can make square shapes of snacks bars, if you want to make other shapes,please contact us for another option model.



    Machine test video:

    https://youtu.be/uDUGc-XvIcA (Almonds bar making machine)
    https://youtu.be/wMHr8RKB3Jg (cereal bar cutting+auto sorting+packing machine)


    If there are any interest for this machine, please be free to contact me:


    Smart2@smartmachinery.cn Whatsapp: +86 15153189382
