    Puff Corn Snack Food Extruder Machine , Extrusion Snacks Food Machinery

    Ask Lasest Price
    Brand Name : SMART
    Model Number : SR-70
    Certification : CE ISO
    Price : 25000-40000usd/line
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets/month
    Delivery Time : 35-45 working days
    • Product Details
    • Company Profile

    Puff Corn Snack Food Extruder Machine , Extrusion Snacks Food Machinery

    Puff Snack Food Extruder Corn Snack Extruder Puffs Food Maize Machines


    Brief Introduction of the core-filling snack machine:

    Food Extruder Machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.


    Corn puff snack machine Snacks Raw materials:
    Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.


    Details & Features:

    1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
    2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
    3. Gearbox with automatic lubrication function, extending gear life.
    4. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
    5. Barrel with water-cooled circulation, raw materials not only for corn/rice, also for wheat flour/starch with high viscosity. Different moisture-extrusion temperature ratio, whole-expanded and half expanded as different type of products.
    6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.


    Standard Configurations

    MotorWEG or Siemens
    Electric PartsABB, Switzerland or Schneider, France
    PLC & Touch ScreenSiemens, Germany
    BearingsNSK, Japan
    ControllerPLC and touch screen control whole line, not one or two equipment
    Protector3 kinds of protectors: overload, overcurrent and overheat. Control cabinet is 24V safe voltage
    Materials

    Cover body, mesh belt and all the parts touching with food are made by Stainless Steel 304


    Technical parameter:

    ModelSR-65SR-70SR-85
    Capacity120-150kg/hr200-260kg/hr300-500kg/hr
    Power70kw90kw120kw
    Dimension15x5x3m18x5x3m22x5x3m
    Workers Needed1-21-22-3

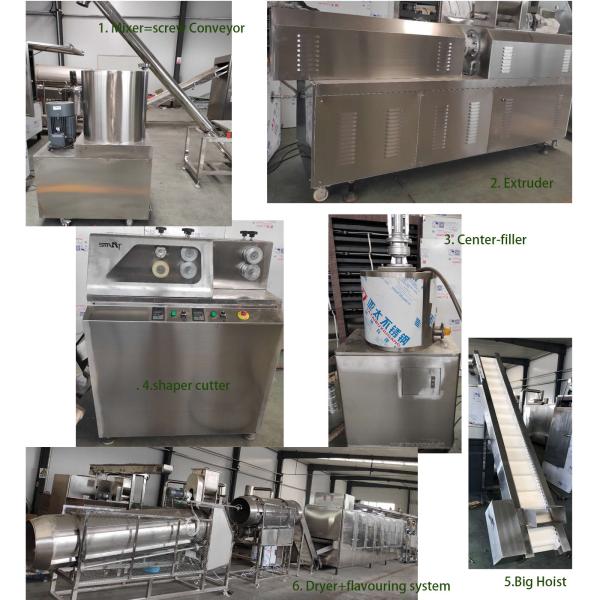

    Flow chart:


    Mixing materials -Screw Conveyor- Extruding -Center-Filler- Cutting machine - Drying - Flavoring (spraying oil & flavor powder)-cooling conveyor


    Package and Delivery picture:


    corn puff snack machine Service & Turnkey Solution:
    a. ) Consultation service before, during, and after sales;
    b. ) Project planning and design service;
    c. ) Debugging of equipment until everything is functional;
    d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
    e. ) Training of equipment maintenance and operating personally;
    f. ) New production techniques and formulas;
    g. ) Provide 1 year complete warranty and life-time maintenance service.


    Test video:


    Puff snack machine:

    https://youtu.be/b2-ArFBFbu4 (puff snack machine)
    https://youtu.be/46laxINeezQ(Kenya customer test video)
    https://youtu.be/dDuPO-EGPRU (bread chips extruder machine)
    Core filling snack
    https://youtu.be/o9aI48-7AEk (center-filler puff snack machine)
    https://youtu.be/QJMq3s8WXfc (chocolate core filling snack machine)
