Molded Pet Snacks Injection Molding Equipment
Introduction of Molded Pet Snacks Injection Molding Equipment:
The dog treats injection machine can use the granular material made
by the extruder to produce the pet chews. Through high temperature
and high pressure, the pet chews molding machine will mold
different shapes.Such as bone, toothbrush, Mace, hedgehog,
crocodile, dog, pork ears, barrel and so on.The pet chews is a kind
of pet toys or pet food. There are many shapes of the pet chews,
such as bone, ball, ring, stick, shoes and particle.The pet chews
are high-protein and nutritional meat for dogs to eat.Due to the
dogs have the hobby to gnaw the bone,the shape is designed to meet
the dogs’ need to play.The products are beneficial for pets with
the features of: strengthening teeth, cleaning mouth and teeth,
reducing the disease etc.
a. Raw Materials: adopts wheat flour,wheat protein isolate, corn flour, fish oil etc
b. Products: different shapes are made by adjusting the dies from extruder
c. Flow chart:
Mixing system---Extrusion system---Injection system---Molding
system---Packing system
d. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it
according to customers’ Local voltage according to different
countries
e. Machines Materials: All the Pet treats injection machine are made by stainless steel,
this line is with reasonable design and with high automation
Technicals for injection molding machine:
| Item | Name of item | Unit | DM-268 |
| Injection Unit | Screw Diameter | mm | 55 |
| Screw L/D Ratio | Ratio | 20 |
| Injection Volume (Theoretical) | cm | 601 |
| Injection Weight (PS) | g | 548 |
| Injection Pressure | Mpa | 185.1 |
| Injection Rate into Air | g/s | 223.7/276.1 |
| Injection Stroke | mm | 256 |
| Injection Speed | Mm/s | 95/116 |
| Screw Speed | rpm | 201/246 |
| Clamping Unit | Clamping Force | KN | 2600 |
| Clamping Stroke | mm | 550 |
| Space Between Tie-bars | mm×mm | 580 x 580 |
| Max. Mould Height | mm | 600 |
| Min. Mould Height | mm | 250 |
| Ejector Stroke | mm | 160 |
| Hydraulic Ejection | KN | 68 |
| Ejector Rob Quantity | pcs | 9 |
| Others | Max. Pump Pressure | Mpa | 17.5 |
| Pump Motor Power | kw | 22/30 |
| Heater Power | kw | 15.9 |
| Hopper Volume | L | 50 |
| Oil Pump Volume | L | 550 |
| Machine Weight | t | 8.5 |
| Mould Positioning Ring Diam | mm | 160 |
| Sphere Radius | mm | SR10 |
| Machine Dimension | m x m x m | 5.82 x 2 x 2 |

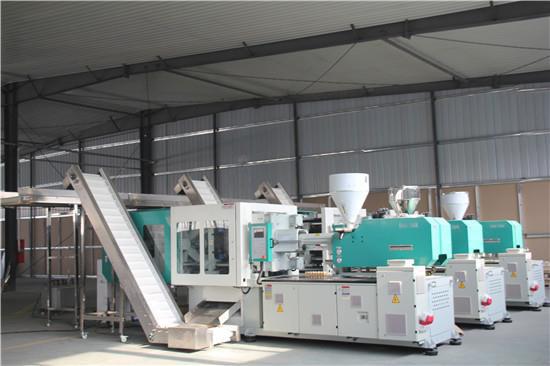

Injection molding machine and samples:
A. Finished time
The production line will be finished in 25-40 days after
confirmation.
B. Payment Term
30% is paid by T/T as the down payment, 70% is paid by T/T or L/C
before shipment.
C. Delivery Time
When the machines are finished, we will invite you to our factory
for testing machine.
then we will arrange the worker to load container promptly after
all corresponding inspection issues finished.
