Dog Chewing Food Extruder Machine Production Line
Introduction of Dog Chews Machine
The pet chews is a kind of pet toys or pet food. There are many
shapes of the pet chews, such as bone, ball, ring, stick, shoes and
particle.The pet chews are high-protein and nutritional meat for
dogs to eat. Due to the dogs have the hobby to gnaw the bone,the
shape is designed to meet the dogs' need to play.The products are
beneficial for pets with the features of: strengthening teeth,
cleaning mouth and teeth, reducing the disease etc.
Features Of Pet Treats Dog Chews Extruder
Machines materials: All the machines are made by stainless steel,
Automatic Dog Treats Making Machine is with reasonable design and
with high automation; the screws are made by alloy steel, with
building block
system structure and self-cleaning function
1) Stable performance: adopting imported frequency or
electromagnetic controlling system, high automation and smooth
operation
2) Permanent working life: with special material and technology,
the screw and nut involved can work continuously for 1 year under
conditions of high wear and pressure.
2. Equipments List:

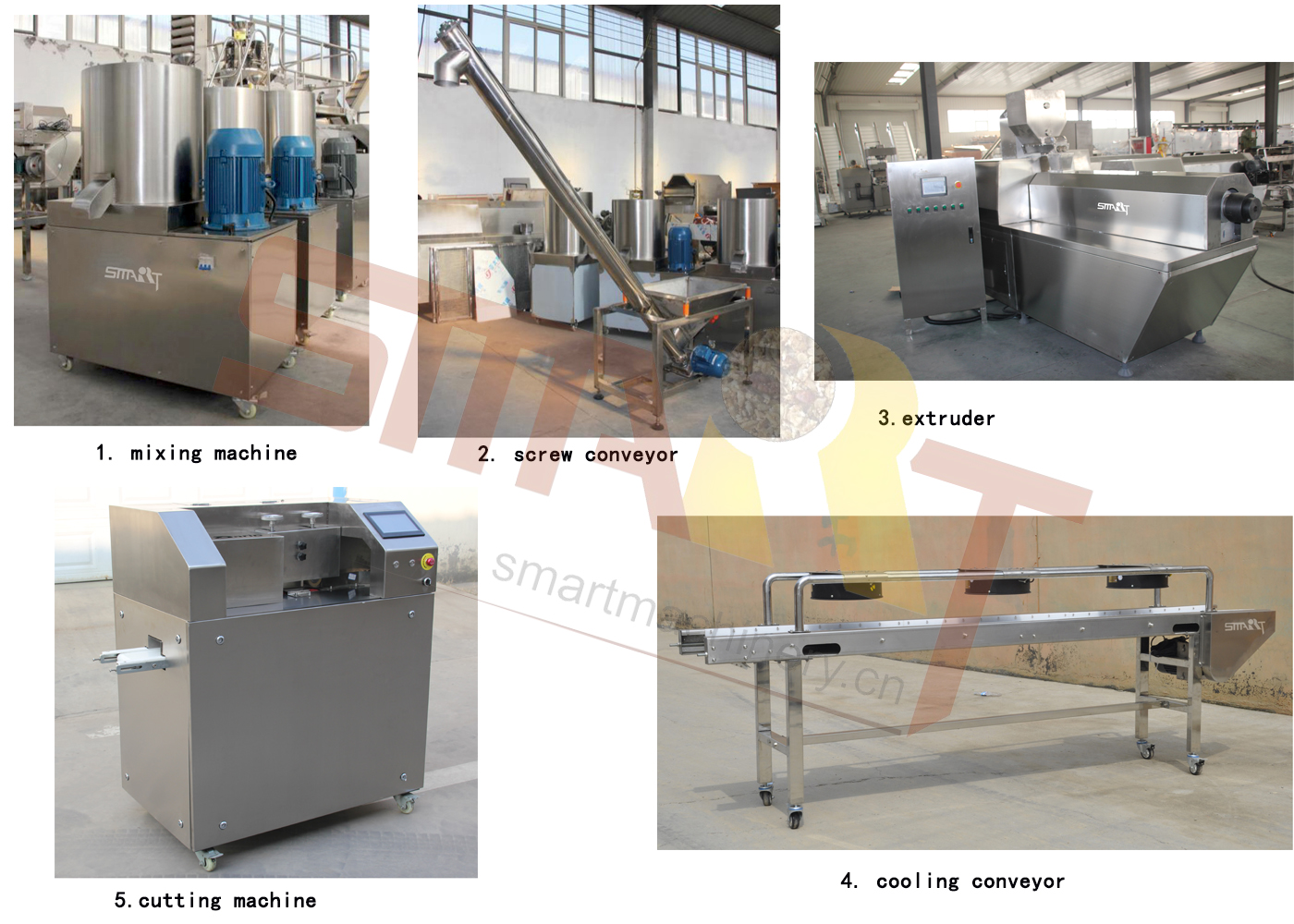

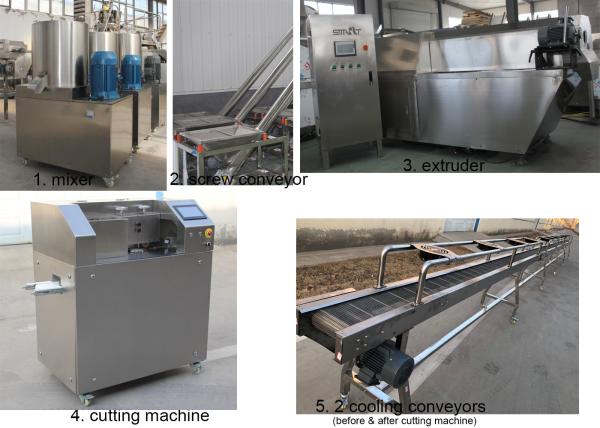

Mixer--- Screw Conveyor--- Single-Screw Extruder---cooling
conveyor---cutter--cooling conveyor
Mixer--- Screw Conveyor--- 2 sets* Single-Screw Extruder---twist
machine ---cooling conveyor---cutter--cooling conveyor
The solution was a single-screw machine for dog food processing,
with a co-extrusion die and cutter,material be forced positively into the screw, eliminating potential ‘dead areas’ where
the material could have dried or coagulated. A flower-shaped dog
treat with a medicinal center was produced, that looked good and
retained its unique shape very well.
3. Technical Parameter of the pet treats machine:
| Model | SRD-100 | SRD-300 |
| Capacity | 100-150kg/hr | 200-300kg/hr |
| Power | 81kw | 95kw |
| Dimension | 18 x 5 x 3m | 20 x 5 3m |
| Workers Needed | 1-2 | 1-2 |
|
3.Process of Pet Treats Chews Dog Food :
a) Mixing materials

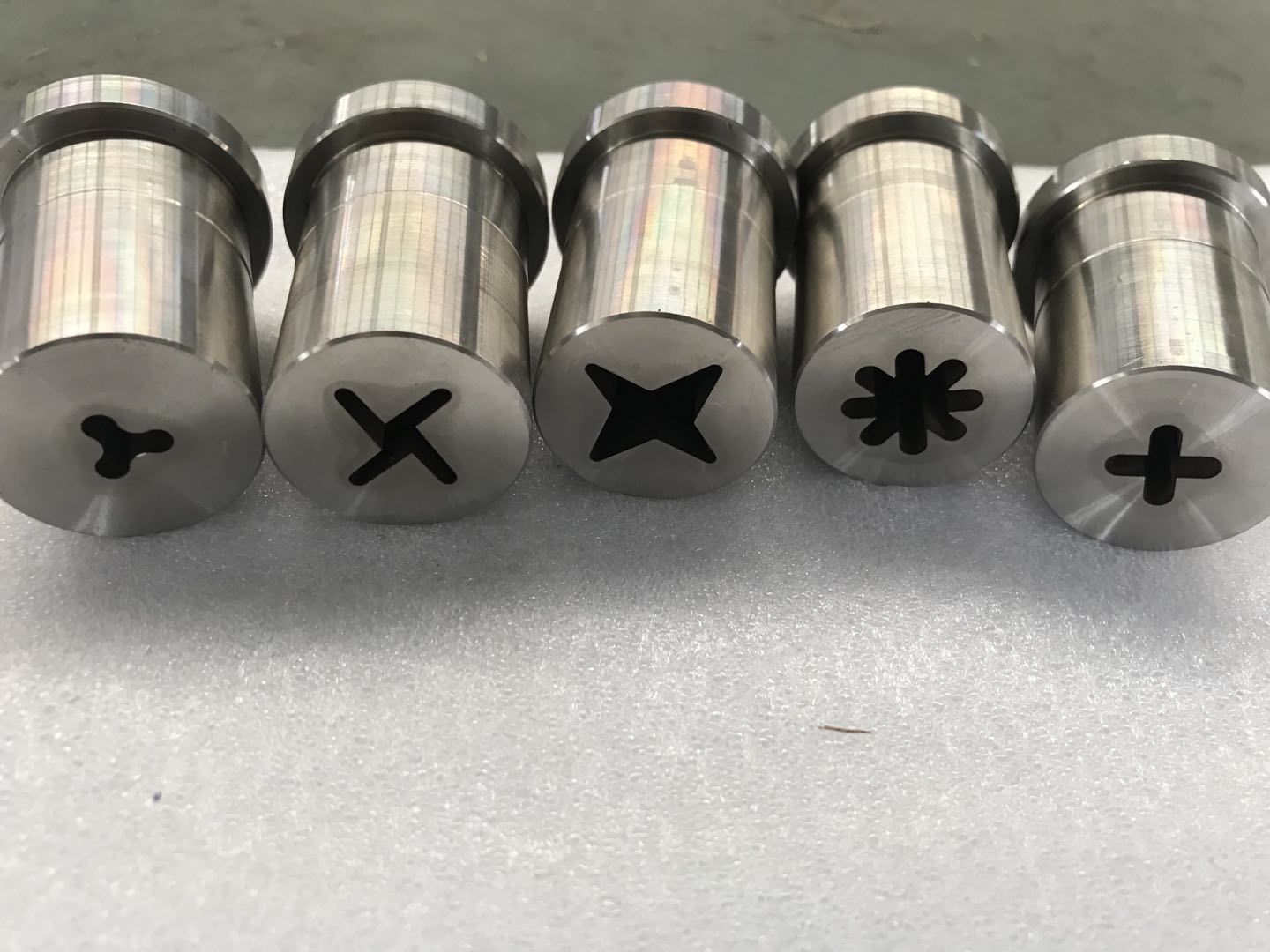

b) Extruding different shape Pet Treats Chews Dog Food by changing
the die
c) Cooling to remove moisture
d) Cutting the pet treats in regular length
f) Packing
4. Use of the pet treats machine:
The use of pet food extrusion equipment in the pet supplies
industry is widespread and established, mainly due to the following
benefits of the production process:
Fast:
Pet food extruders operate continuously, yielding high quantity to
meet strict production deadlines. Diamond America extruders are
designed for fast, easy changeover and cleaning between runs.
Flexible:
Extrusion pet food manufacturing is adaptable, for application to a
wide range of input material types. Also, extrusion can produce
many different forms of final product in terms of shape, texture
and color.
Consistent:
Pet food extrusion and cutting produces a very uniform end product
of constant cross section and size. The process is extremely
controllable and reliable, allowing high quality to be maintained
throughout.
Efficient
The highly repeatable extrusion process is low in cost, especially
once conditions have been optimized. Precise process control and
automation reduces waste and boosts productivity.
Pet food extrusion equipment can be used on all forms of
manufactured feed: dry food (sometimes called kibble), semi-moist products and
treats. Common pet food ingredients include flour, meal, grits,
meat, fats, minerals, amino acids and vitamins, often with the
addition of flavor enhancers, texturing agents and preservatives.
The growing industry dictates frequent product changes, both in
ingredients and aesthetics, to suit market trends and demands. The
adaptability of pet food extrusion equipment easily accommodates
process innovation and variation, without significant changes in
machine configuration.
Experts in custom extruder manufacture for all types of pet food
products.
Pet food extrusion equipment can be used on all forms of
manufactured feed: dry food (sometimes called kibble), semi-moist
products and treats. Common pet food ingredients include flour,
meal, grits, meat, fats, minerals, amino acids and vitamins, often
with the addition of flavor enhancers, texturing agents and
preservatives.
The growing industry dictates frequent product changes, both in
ingredients and aesthetics, to suit market trends and demands. The
adaptability of pet food extrusion equipment easily accommodates
process innovation and variation, without significant changes in
machine configuration.
Production Line pictures and sample pictures:
Test Videos:
