Dog Chewing Treats Injection Moulding Machine
Parameter
1. Motor: WEG OR SIEMENS
2. Electric Parts: ABB or Schneider
3. PLC and Touch Screen: Siemens
4. Bearing: NSK
5. Materials: All the cover body, mesh belt and parts touching with
raw materials or final products are Stainless Steel.
Introduction of Dog Chewing Treats Injection Moulding Machine
The Pet treats injection machine can use the granular material made
by the extruder to produce the pet chews. Through high temperature
and high pressure, the pet chews molding machine will mold
different shapes.Such as bone, toothbrush, Mace, hedgehog,
crocodile, dog, pork ears, barrel and so on.The pet chews is a kind
of pet toys or pet food. There are many shapes of the pet chews,
such as bone, ball, ring, stick, shoes and particle.The pet chews
are high-protein and nutritional meat for dogs to eat.Due to the
dogs have the hobby to gnaw the bone,the shape is designed to meet
the dogs’ need to play.The products are beneficial for pets with
the features of: strengthening teeth, cleaning mouth and teeth,
reducing the disease etc.
a. Raw Materials: adopts wheat flour,wheat protein isolate, corn
flour, fish oil etc
b. Products: different shapes are made by adjusting the dies from
extruder
c. Flow chart:
Mixing system---Extrusion system---Injection system---Molding
system---Packing system
d. Voltage in China: Three phases: 380V/50Hz, Single phase:
220V/50Hz, we can make it according to customers’ Local voltage
according to different countries
e. Machines Materials: All the Pet treats injection machine are
made by stainless steel, this line is with reasonable design and
with high automation
Technicals for injection molding machine:
| Item | Name of item | Unit | DM-268 |
| Injection Unit | Screw Diameter | mm | 55 |
| Screw L/D Ratio | Ratio | 20 |
| Injection Volume (Theoretical) | cm | 601 |
| Injection Weight (PS) | g | 548 |
| Injection Pressure | Mpa | 185.1 |
| Injection Rate into Air | g/s | 223.7/276.1 |
| Injection Stroke | mm | 256 |
| Injection Speed | Mm/s | 95/116 |
| Screw Speed | rpm | 201/246 |
| Clamping Unit | Clamping Force | KN | 2600 |
| Clamping Stroke | mm | 550 |
| Space Between Tie-bars | mm×mm | 580 x 580 |
| Max. Mould Height | mm | 600 |
| Min. Mould Height | mm | 250 |
| Ejector Stroke | mm | 160 |
| Hydraulic Ejection | KN | 68 |
| Ejector Rob Quantity | pcs | 9 |
| Others | Max. Pump Pressure | Mpa | 17.5 |
| Pump Motor Power | kw | 22/30 |
| Heater Power | kw | 15.9 |
| Hopper Volume | L | 50 |
| Oil Pump Volume | L | 550 |
| Machine Weight | t | 8.5 |
| Mould Positioning Ring Diam | mm | 160 |
| Sphere Radius | mm | SR10 |
| Machine Dimension | m x m x m | 5.82 x 2 x 2 |

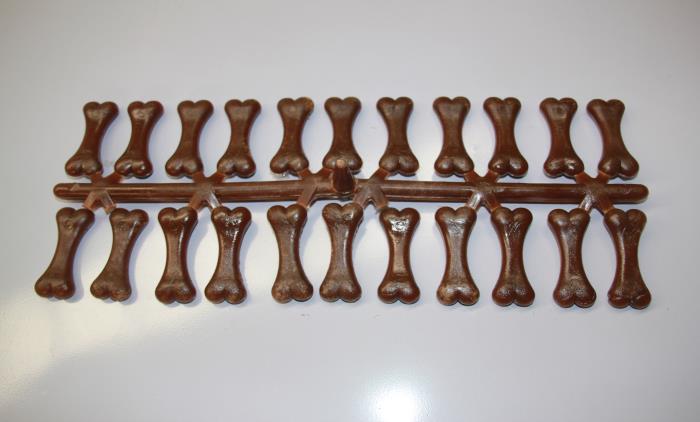

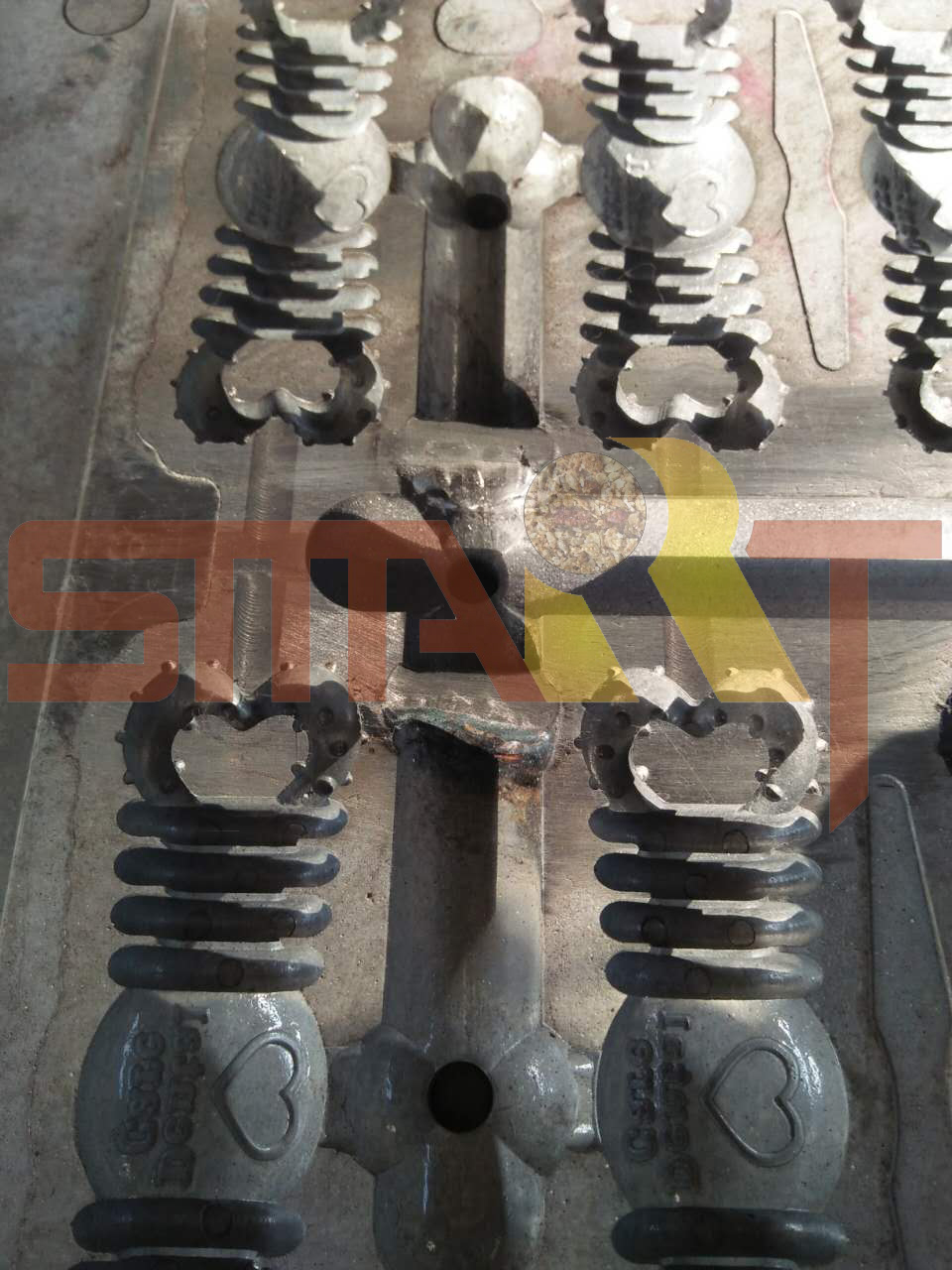

Injection molding machine and samples:
Why us?
Q: Why us Smart
Smart: With more than 10 years experience in designing and
manufacturing food machines, Darin feels proud and confident to
introduce our machines to you and your esteemed company as one of
the most competitive supplier in this business. What we strive to
do all the time is providing innovative machines for our customers.
Q: What materials Smart adopted in those machines?
Smart: All the parts that touched with Darin will use food grade
SS304, PU belt, strong carbon steel or appointed material for the
bearing parts.
High quality electronic components supplied by well-reputated
company like Siemens and WEG.
Q: How to get a proper quotation with good price?
Smart: Contact us directly and provide as more information as you
can, like the product pictures, weight, capacity, voltage and
frequency of the motor requested, delivery date if there's urgently
need. Quotation will be sent to your inbox immediately once
everything is clear.
Q: When will the machines be shipped?
Smart: Normally around 25 working days.
Q: How to visit us if you're having a business visit in China?
Smart: Our factory and office is located at Xinxu Industrial Park,
Jinan, China. Send a text message in advance and keep in touch then
we will arrange for your itinerary here according to your
requirements.
OUR FACTORY :
Shandong Smart Machinery Co., Ltd is a growing company locates in
Jinan, China. The main products includes:
1. Bar forming machine, which contains cereal bar moulding machine,
granola bar moulding machine, nuts bar moulding machine,
dehydradted fruits moulding machine, cereal bar cutting machine,
granolar bar cutting machine, nuts bar cutting machine, dehydrated
fruits bar cutting machine, halva bar cutting machine, protein bar
forming machine, energy bar forming machine, two layers bar forming
machine.
2. Automatic proportioning system
3. Chocolate coating machine and cooling tunnel
4. Automatic sorting conveyer and flow packing.
Our Clients factory feedback
A. Finished time
The production line will be finished in 25-40 days after
confirmation.
B. Payment Term
30% is paid by T/T as the down payment, 70% is paid by T/T or L/C
before shipment.
C. Delivery Time
When the machines are finished, we will invite you to our factory
for testing machine.
then we will arrange the worker to load container promptly after
all corresponding inspection issues finished.
