Stainless steel 304 or as customer’s request

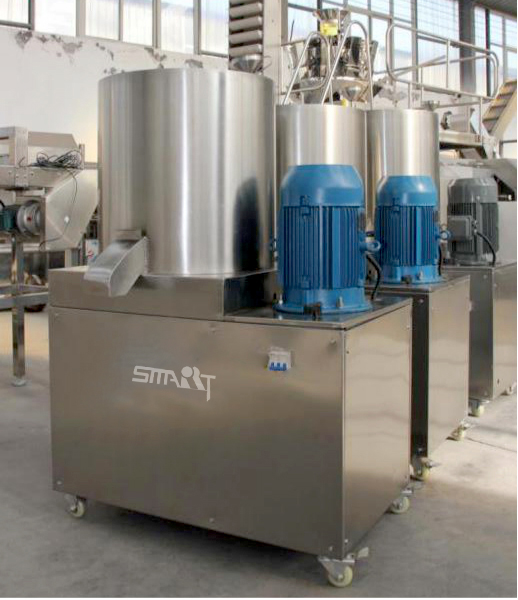

Flour Mixer

Output: 60kg/load

Power: 4kw/380V

Dimension:

1200 x 800 x 1200mm

Weight: 230kg

Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives.

• Stainless steel structure, especially the parts in contacting with the raw material or products;
• Cover small area, easy cleaning, and operate stably.

Screw Conveyor

Driving Power: 1.1kw

Vibrating Power: 0.03kw

Dimension:

2900 x 1000 x 3100mm

Screw Conveyor is used to the convey the materials to the feeder of the extruder.

• Stainless steel structure, especially the parts in contacting with the raw material or products;
• The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution;
• Equipped with vibrating sifter to feed the materials stably and evenly;
• Easy cleaning and operation; run stably.

SRD-300 Single Screw Extruder

Output: 150kg/hr

Extruder Dimension:

3450 x 900 x 2200mm

Feeding System:

Feeding power: 0.75kw

Feeding screw diameter: 55mm

Feed Screw Speed: 0-150rpm

Driving & Extruding System:

Main Motor Power: 45kw

Main Screw Length:

3250mm

Main Screw Diameter:

100mm

Main Screw Speed: 0-250rpm

Heating Zone: 5 zone

Heating Power: 2kw x 7 = 14kw (7 heating rings)

Control System:

Electric Cabinet Dimension: 630 x 470 x 1740mm

SRD-300 Single Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by one screw composed by sectional modules for the following functions: forward and backward transport, mixing, cooking and forming.

Ø PLC and 10” touch screen with friendly interface to control the whole line, not one or two single equipment;

Ø While any parts got problems, the fault alarm will be shown on the touch screen;

Ø Password can be set on the touch screen to avoid any misoperation by the workers;

Ø The structure is made by carbon steel, and the cover body, mixing tank and all the parts in contacting with the raw material are made by stainless steel;

Ø A wide range of products can be obtained in a variety of different ways, and can configure various dies simply and rapidly;

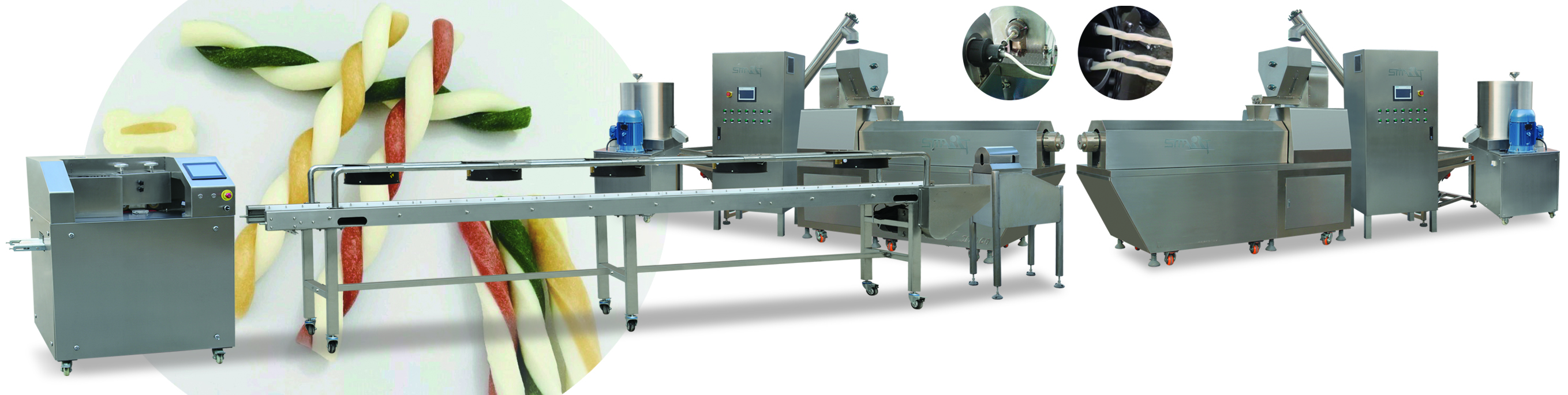

Ø Two sets of Single Screw Extruder can work together to make double-color pet treats, also can connect Twisting Device for twist pet treats;

Ø The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost;

Ø The screw is all made by 38CrMoALA alloy, and the surface is being processed nitrogen treatment, so the hardness could reach 55hrc, which is hard and strong, and has longer service life;

Ø Barrel is divided into 4 temperature zones, and each zone is controlled separately;

Ø Auto-temperature control system; make the temperature controlling more direct viewing and the parameter more precise;

Ø Equipped wit cooling system for cooling the barrel and screw;

Ø Control cabinet has three kinds of protections: overload protection, overcurrent protection and overheat protection.

Ø Nice appearance with streamline modelling.
