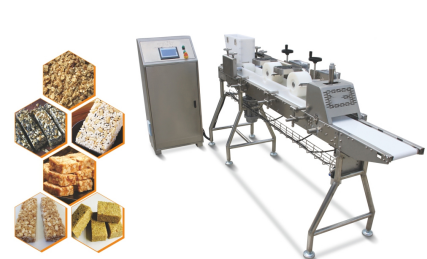

Small Granola Bar Line Mini Cereal Bar Making Machine
Automatic CE Small Granola Bar Line Mini Cereal Bar Making Machine
Small Granola Bar Line Mini Cereal Bar Making Machine Introduction:
Cereal candy bar making machines is suitable for produce cereal
bar, peanuts bar, caramel treats, and so on with various raw
materials like rice, millet, wheat, highland barley, maize,
broomcorn, Chinese pearl barley, buckwheat, nuts, etc, and and
berries such as goji, raisins also can be added.
This production line has the advantages of more machines
choice,flexible and diverse configurations, wide range of raw
material application, numerous in products variety and easy
operation.
Small Snack Cereal granola bar Mini Brittle Praline Oatmeal
Moulding production line Energy forming Making machine for Food
Shop which we special design for small business use like store,
bakery shop or home.
Technical parameter for the mini snack bar former:
Output | 40-60pcs/min |
Power | 2.2kw |
Material Hopper Size | 540 x 450 x 350mm |
Hopper Volume | 8L |
Conveying Belt Width | 180MM |
Product width | 30-150mm |
Product thickness | 10-30mm |
Weight | 500kg |
Dimension | 3000 x 600 x 1500mm |
Notice: the sugar boiler& Auto-sorting and packing machine is optional
equips, customer can choose as production requirements.
Capacity: Brittle Nuts Oatmeal Moulding Energy forming Making machine
100kg/h
Voltage: Brittle Nuts Oatmeal Moulding Energy forming Making machine
Three phases: 380V/50Hz, Single phase: 220V/50Hz. we can make it
according to customers' Local voltage according to different
countries.
Raw material: Brittle Nuts Oatmeal Moulding Energy forming Making machine
rice/wheat/millet/corn or other grains.
The whole line of Brittle Nuts Oatmeal Moulding Energy forming
Making machine
Mixer----Cooking machine---Cutting form machine-Packing
DR-50 Syrup Cooker(Electric type)
Volume: 50L Tank diameter: 600mm Tank depth: 450mm Power: 9kw Power of Agitator:0.75kw Heating Area: 0.53m³ Heating temperature: Max. 260℃ Weight: 105kg Dimension: 1050 x 800 x 1850mm | DR-50 Sandwich Pot is used to melt and heat the sugar.
- Double-layer design.
- Heat evenly, and transferred by heat transfer oil.
- The pot can be turned in 180 degree, which is easy to pour the
sugar.
- Equipped with mixing blades.
- It has the function of warm-keeping.
- Materail is SUS304.
|
|
DRCT-35 Mixer
Power: 3kw Speed: 50rpm Mixing Tank Size: 390 x 380 x 410mm Heating temperature: 0-60℃ Weight: 200kg Dimension: 750 x 550 x 950mm | DRCT-35 Mixer is used to evenly mix the sugar with the puffed rice, millet,
wheat, highland barley, fagopyrum tataricm Gaertn, maize,
broomcorn, Chinese pearl barley, buckwheat, etc.
- The hopper has warm-keeping function.
- The coating has non-sticky design.
- Meet food grade, and easy to clean.
|
|
| Name & Parameters | Description | Picture |
Mini Granola Bar Former
Output: 60-80pcs/min Power: 2.2kw Material Hopper Size: 540 x 450 x 350mm Hopper Volume: 8L Conveying Belt Width: 180mm Product width: 30-150mm Product thickness: 10-30mm Weight: 500kg Dimension: 3000 x 600 x 1500mm | Mini Granola Bar Former can be used for producing rectangular shape cereal bar.
Ø The pressing roller is made of food grade HMWHDPE material, more
healthy with anti-sticking function. The side of roller mark the
scale. Customer could accurately adjust the height of roller to
meet the different thickness product requirement. Ø The useful width of cereal bar cutting machine is 170mm. Ø Controlled by PLC with touch screen with friendly interface. Ø Using high performance frequency inverter, easy adjust speed,
high efficiency, it can produce 24-hour continuously. |
|
Machine details and packing:
Machine test video:
If there are any interest for this machine, please be free to send
us enquiry.
