Animal Feed Dog Food Kibble Production Equipment
1. Processing line introduction

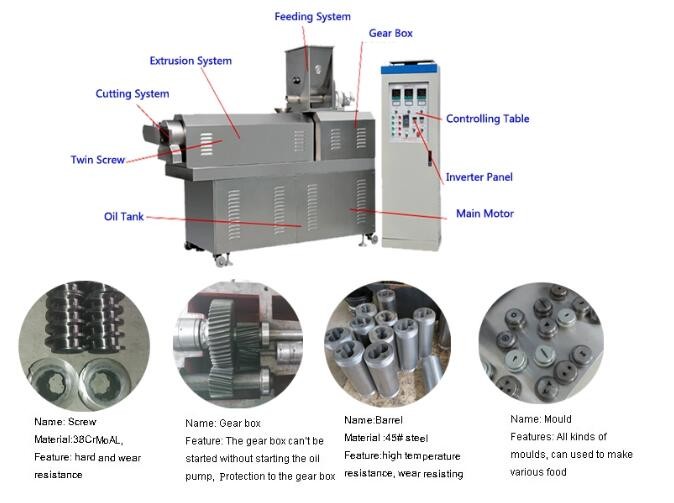

Pet food processing line is mainly made up with raw materials
treatment system, extrusion system, drying system, flavoring system
and controlling system. It has high stability and automatic
performance, which offers the possibility to control the expansion
of the extrudate through various means to control the texture of
the final product.
2. Processing line description
2.1 Flow chart: raw materials→ extrusion→ drying→ flavoring→
cooling→ packing
2.2 Processing line features
2.2.1 High work efficDry dog food making machineiency, automation
degree, materials usage, application range.
2.2.2 Low land occupation, power consumption, labor cost, waste
rate.
2.2.3 Various configurations and capacity choices.
2.2.4 Various finished products (such as dog food, cat food, fish
feed).
2.2.5 Production factors can be quantified and controlled.
2.3 Processing line parameters
| Type | Model | Capacity (kg/h) | Installed Power (kw) | Actual Power (kw) |
Dry
Type | SLG65-P | 100-150 | 74 | 52 |
| SLG70-P | 200-250 | 105 | 75 |
| SLG85-P | 300-500 | 205 | 150 |
Wet
Type | SLG90-P | 800-1000 | 132 | 80 |
| SLG95-P | 1000-1500 | 165 | 106 |
| SLG120-P | 2000-2500 | 226 | 140 |
3. Extruded dry pet food introduction
Basing on modern extrusion technique, extruded dry pet food is made
from cereals powder, meat (or meat meal), vitamins and minerals as
raw materials, which is fit for different age grades and varieties
pets. Compared with traditional pet food, expanded pet food has the
advantages of easier high absorption, higher nutritional ingredient
use ratio, longer storage time etc. The shapes and sizes can be
controlled by die moulds.
4.Packing&Shipping
5.Services
5.1 1 year warranty period.
5.2 Supply free fittings and general tool.
5.3 Engineers available to service machinery overseas.
5.4 Supply formula of raw materials.
5.5 Workshop design suggestion
