Dog Meat Block Forming Machine
Beef Jerky Treats/ Dog Meat Block Forming Machine By Using Molds
Introduction of meat bites forming machine:
Beef Granules/Meat Dices/Codfish Cubes Forming Machine can be used
for producing beef granules,meat dices,codfish cubes with different
shapes and sizes by changing the molds.
Configuration:
- PLC: Simens
- Motor: Simens
- Touch screen: Simens
- Main electronics: Simens or Schneider
- Any parts may contact food are made by good quality stainless
steel, food grade PU belt
Features for the meat bites machine:
1. The shapes can be round, cylindrical, square, semi round,
triangular and blossom, etc.
2. Mechanical pressing & rubbing, does not hurt nuts, without
waste.
3. Mechanical driving, accuracy positioning, upper and nether
moulds tight fit, makes super cereal bar shaping.
4. Using high performance frequency inverter, easy adjust speed,
high efficiency, it can produce 24-hour continuously.
5. Moulds and hopper are both non-sticky processed. All the parts
may contacts food are all non-toxic material, oil and high
temperature resistance.
6. Cooling conveyer can be customized as demand.
Flow chart:
Mixing Materials - Material Forming - De-mouding - Baking or Drying
Technical parameter
Output | Installed Capacity | Actual Capacity | Voltage / Frequency | Dimension | Workers Required |
300-400kg/hr | 10kw | 7kw | 380V 50Hz | 11 x 4 x 2m | 3 |
| Model | SRC-65 |
| Capacity | 300-400kg/hr |
| Material Hopper Size | 800 x 400 x 350mm |
| Material Hopper Volume | 90L |
| Mixer Tank Temperature | 0-70℃ |
| Mold Quantity | 75pcs, includes - Forming mold x 69pcs - Pressing mold x 3pcs - Demolding mold x 3pcs |
| Forming Mold size | 468 x 173mm |
| Effective mold size | 352 x 154mm |
| Power | 7kw |
| Weight | 1400kg |
| Dimension | 6200 x 4700 x 1600mm |

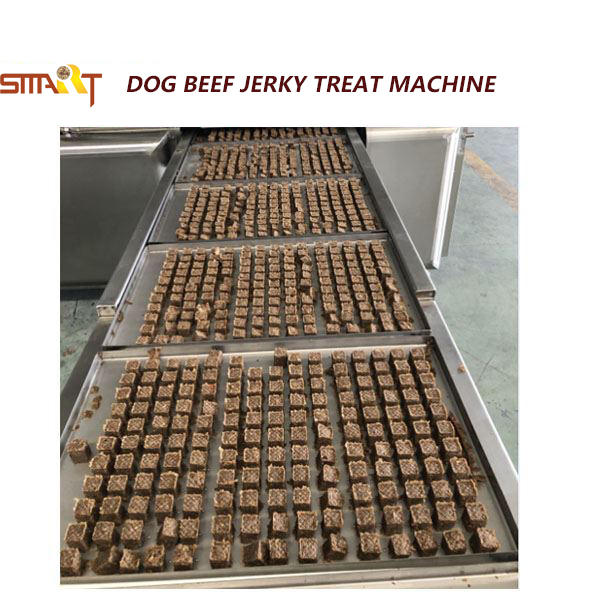

Machine and sample pictures:
Working video:
This is our new design machine, which can make meat bites for human
and dogs, cats, any interest, please contact us freely!
