Hydraulic Rawhide/Sheepskin Rawhide Bone/Cowhide Bone Pressing
Machine
Introduction of Sheepskin Rawhide Bone/Cowhide Bone Pressing
Machine:

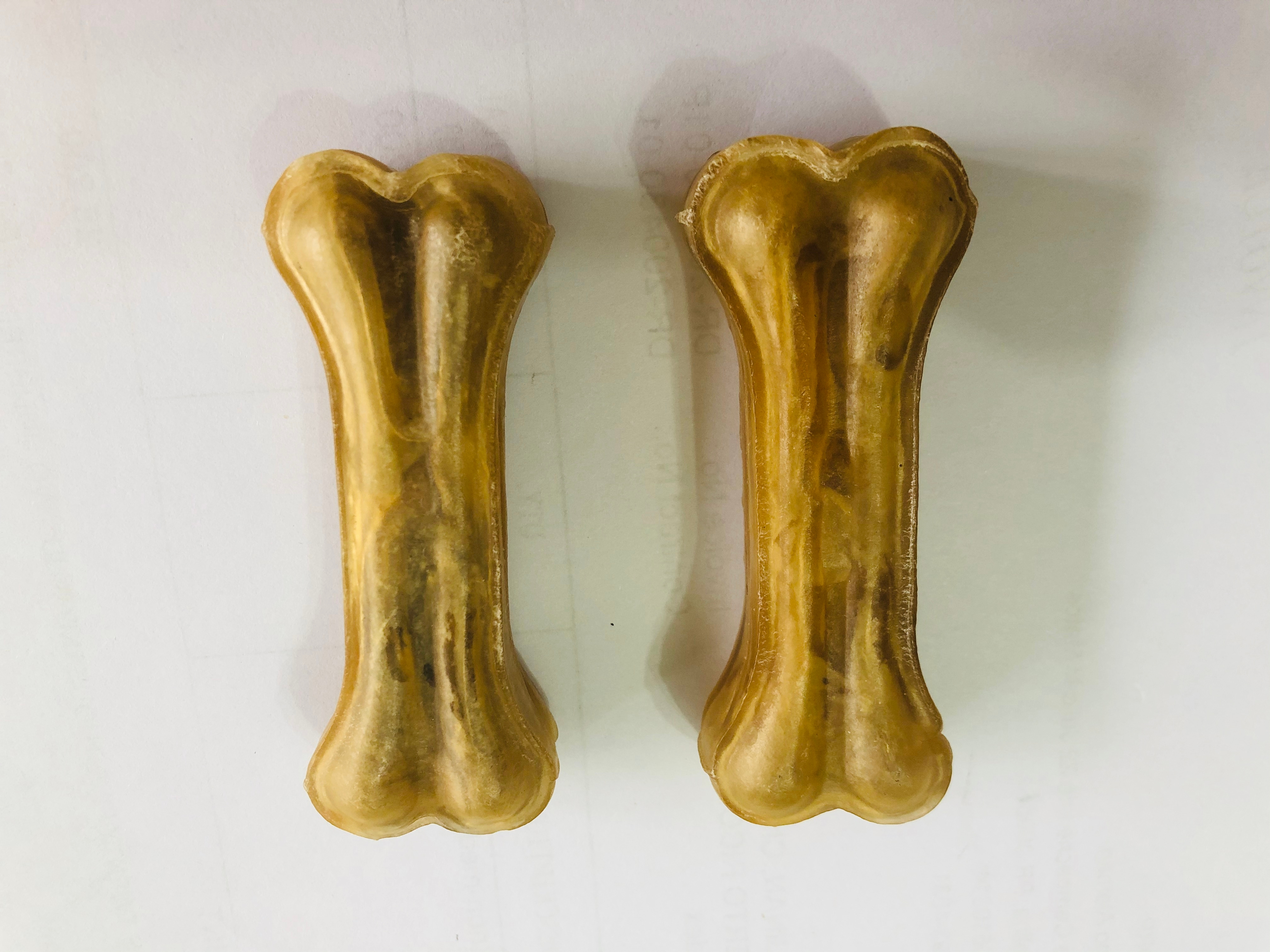

Rawhide Bone Production Machine could produce pet bone with rawhide
as raw materials.
Technical Parameters
| ProjectS | R-20T/60T |
| Liquid Pressure of Work | 14-21Mpa |
| Theory Output | 5-20t |
| Working Surface Size | Left and Right 500mm |
| Working Surface Size | Front and Back 400mm |
| Height of Working Table to the Ground | 780mm |
| Biggest Operational Height | 400mm |
| Close Height | 200mm |
| Cylinder Stroke | 200mm |
| Motor Power | 5.5kw |
Advantages of Rawhide Bone/Cowhide Bone Pressing Machine:
1. Different combination screws can produce different products.
2. Various dies can produce various shapes pet food.
3. Touch screen to control ,easy to operate.
Features:
1. This Dog Chew Bone Machine is type of Flour Column and Three
Board, the up-most output tonnage is 60t.
2. It can be adjusted among the range of 5t-60t according to the
different products’ procedures, the purpose is to arrive the best
required output. Cylinder Stroke is 350mm
3. The dimension of effective working surface is 500mm*400mm, the
close height is 350mm. Well, our SR-60 Punching Machine has two
types, manual operation and automatic operation, meanwhile, it can
count and timing automatically, safe and protective.
4. Dog Chew Bone Machine’s middle plate and lower plate open
two-article T-slot respectively, the pressure system is
rear-mounted and the below equips with horizontal floor mat.
Mold Design:
The mold surface size is 500 x 400mm, so the bone size can be
determined within this range. Kindly please let us know the bone
size as picture below, so that we can make mold design and
calculate the quantity of bones can be produced in one mold.
Machine and factory pictures:
Videos:
Packaging:
The machines will be wrapped by plastic bags firstly and then
packed in wooden case.

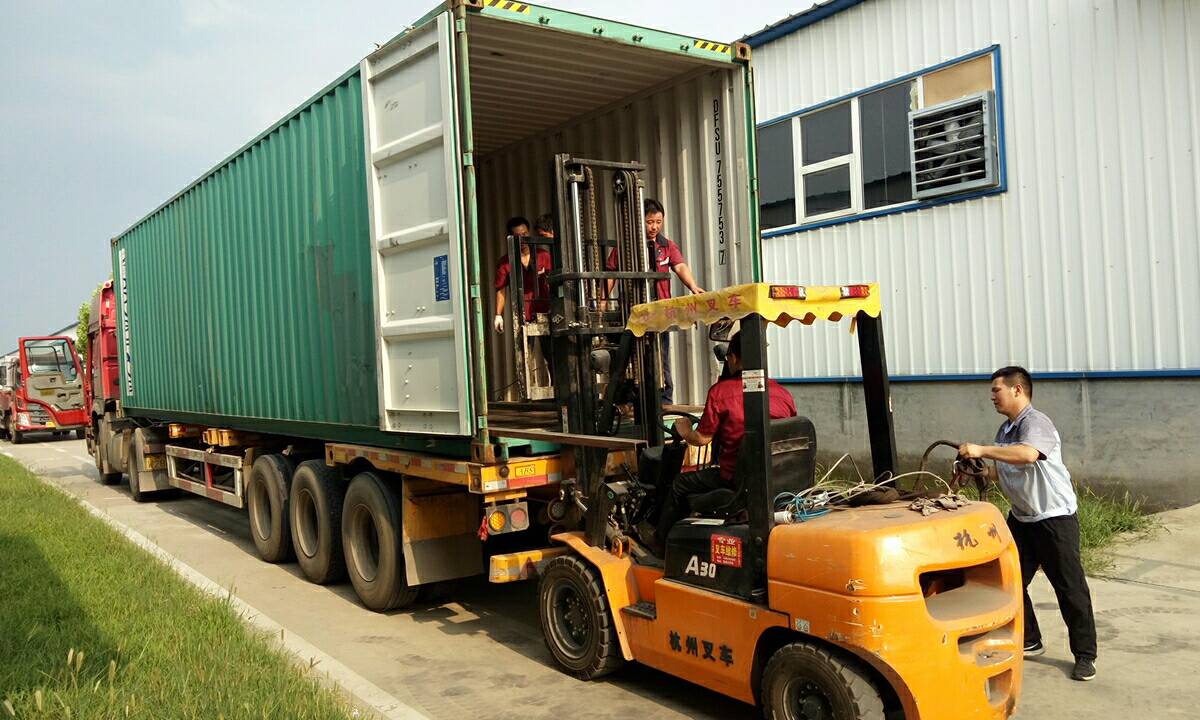

Shipping:
Our shipping agents and delivering equipments will be ready in time
to ensure timely delivery and safety of the goods.
Service
We will provide the most thoughtful services for our clients:
Before sale services:
1). Provide the free consultation of the equipment.
2). Provide the standard device and the flow chart.
3). According to the clients’ special requirement, offering the
reasonable plan and free design helping to select the equipment.
Services during the sales:
1). Help client design the factory and offering professional
advice, free engineering drawing for the factory layout.
2). Welcome to visit our factory or the domestic clients’ factory.
3). Inspect the machine before leaving the factory.
After sale services:
1). Oversea install and debug the equipment.
2). Train the first-line operator.
3). Provide the basic formula.
4). Operation/ Service/ Maintenance Manual: Provided In English.
5). We will provide 1-2 engineer to the client's factory for the
installation and teach totally in 10 days. The client need provide
room, food, round-trip transportation, visa fee and a nominal $50
daily subsidy per person.
Please send us inquiry if there are any interest, best price will
be provided within 24 hours!
