Simens Motor Mini Dry Fruit Bar/Granola Bar Pressing And Cutting Machine

Introduction of Mini granola bar machine:

Chocolate Coated Mini Granola Bar Cereal Bar Dry Fruits Bar Forming Line to Make Granola Bars, Nuts Bars,Seeds Bars etc. Including Mini Granola Bar Former+Mini Chocolate Enrobing Machine+Mini Cooling Tunnel+Flow Wrap Packing Machine

Advantage of Mini dry fruit bar machine:

Production and packing is fully automatic.
Small floor space: 10㎡
Low power consumption
Low investment.
Operator required: 1
Material: nuts, melon seeds, fruits, pop rice, granola, or their mixture
Versatile products: nut bar, granola bar, rice bar, fruits bar, energy bar...
Binder: jaggery, glucose, honey, dates, chocolate, fruit jam....
Setting up: ready set up before delivery, just need connecting cable line.
Easy to learn: one hour online training
Lead time: 18 days
Package: Export wooden case, suitable for long terms transportation.
Provides: recipes

Technical parameters:

Full line of mini cereal bar machine:

Name & Parameters	Description	Picture
Movable heat preservation tank	Volume: 120L Full made of stainless steel. The heat preservation tank can be raised to match the top cover and mixing blade, insulation layer is able to keep warm for sugar syrup. It's used to store the melted syrup.

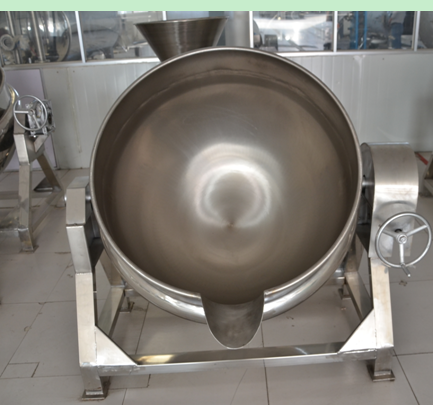

DR-50 Syrup Cooker(Electric type) Volume: 50L Tank diameter: 600mm Tank depth: 450mm Power: 9kw Power of Agitator:0.75kw Heating Area: 0.53m³ Heating temperature: Max. 260℃ Weight: 105kg Dimension: 1050 x 800 x 1850mm	DR-50 Sandwich Pot is used to melt and heat the sugar. Double-layer design. Heat evenly, and transferred by heat transfer oil. The pot can be turned in 180 degree, which is easy to pour the sugar. Equipped with mixing blades. It has the function of warm-keeping. Materail is SUS304.
DRCT-35 Mixer Power: 3kw Speed: 50rpm Mixing Tank Size: 390 x 380 x 410mm Heating temperature: 0-60℃ Weight: 200kg Dimension: 750 x 550 x 950mm	DRCT-35 Mixer is used to evenly mix the sugar with the puffed rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc. The hopper has warm-keeping function. The coating has non-sticky design. Meet food grade, and easy to clean.
Mini Granola Bar Former Output: 60-80pcs/min Power: 2.2kw Material Hopper Size: 540 x 450 x 350mm Hopper Volume: 8L Conveying Belt Width: 180mm Product width: 30-150mm Product thickness: 10-30mm Weight: 500kg Dimension: 3000 x 600 x 1500mm	Mini Granola Bar Former can be used for producing rectangular shape cereal bar. Ø The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement. Ø The useful width of cereal bar cutting machine is 170mm. Ø Controlled by PLC with touch screen with friendly interface. Ø Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
4m Cooling Tunnel	3P Cooling tunnel Freezing medium: R404 Belt length: 4m Cooling area: 3500x600mm Cooling temperature: 2-10℃
LSU-220 Automatic Sorting & Packing Line Speed: 80-120pcs/min (depend on product length) Product width: 35-100mm Product length: 35-200mm Power: 8.5kw	LSU-220 Sorting & Packing Line is used for auto sorting and packing the cereal bar product. The cooler of the cutting machine connect with sorting machine, cereal bar will be auto sorted and conveyed to the belt and packing machine, then packed automatically one by one. All parts touching with materials are made by stainless steel or food grade PU belt.

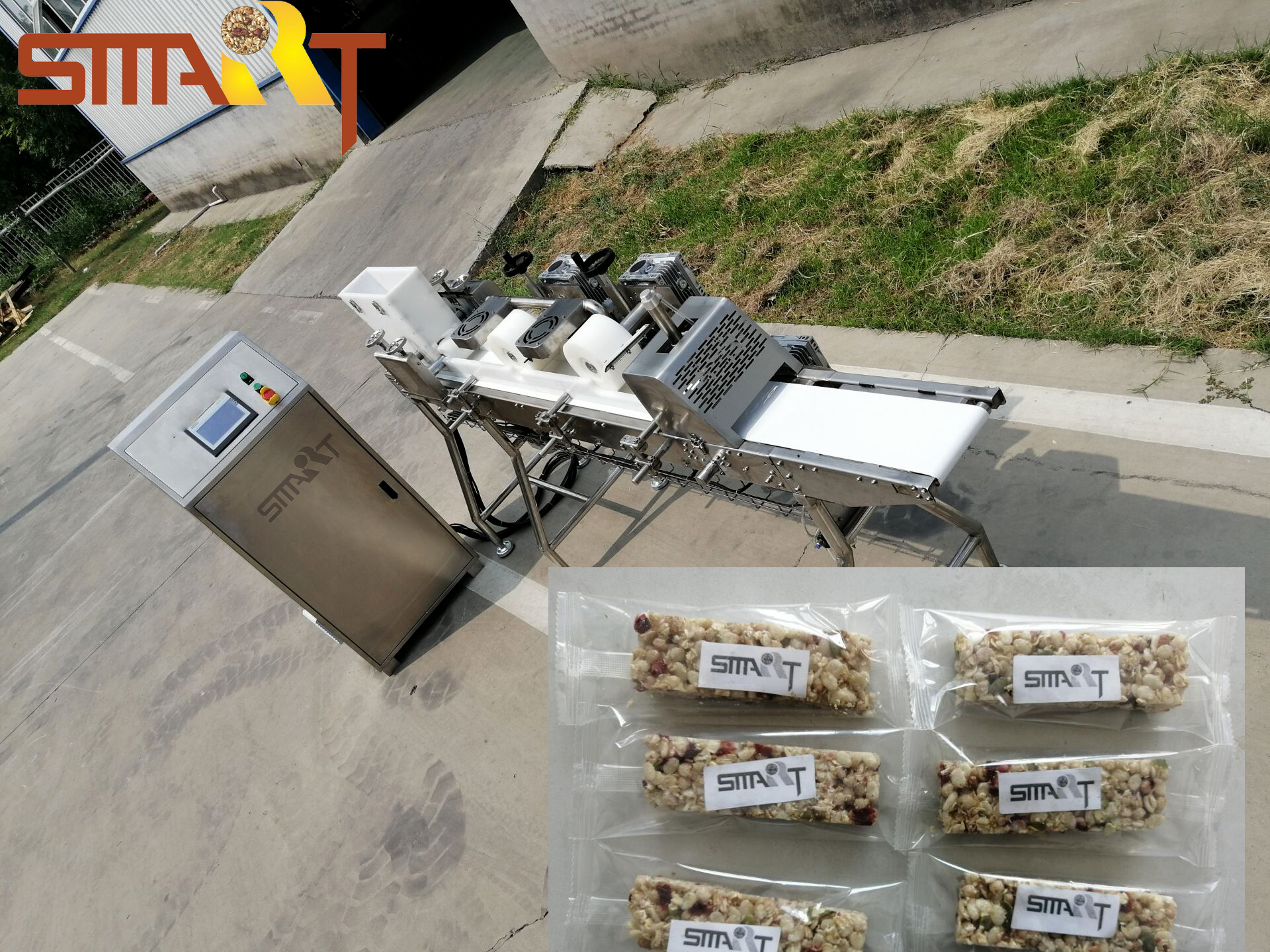

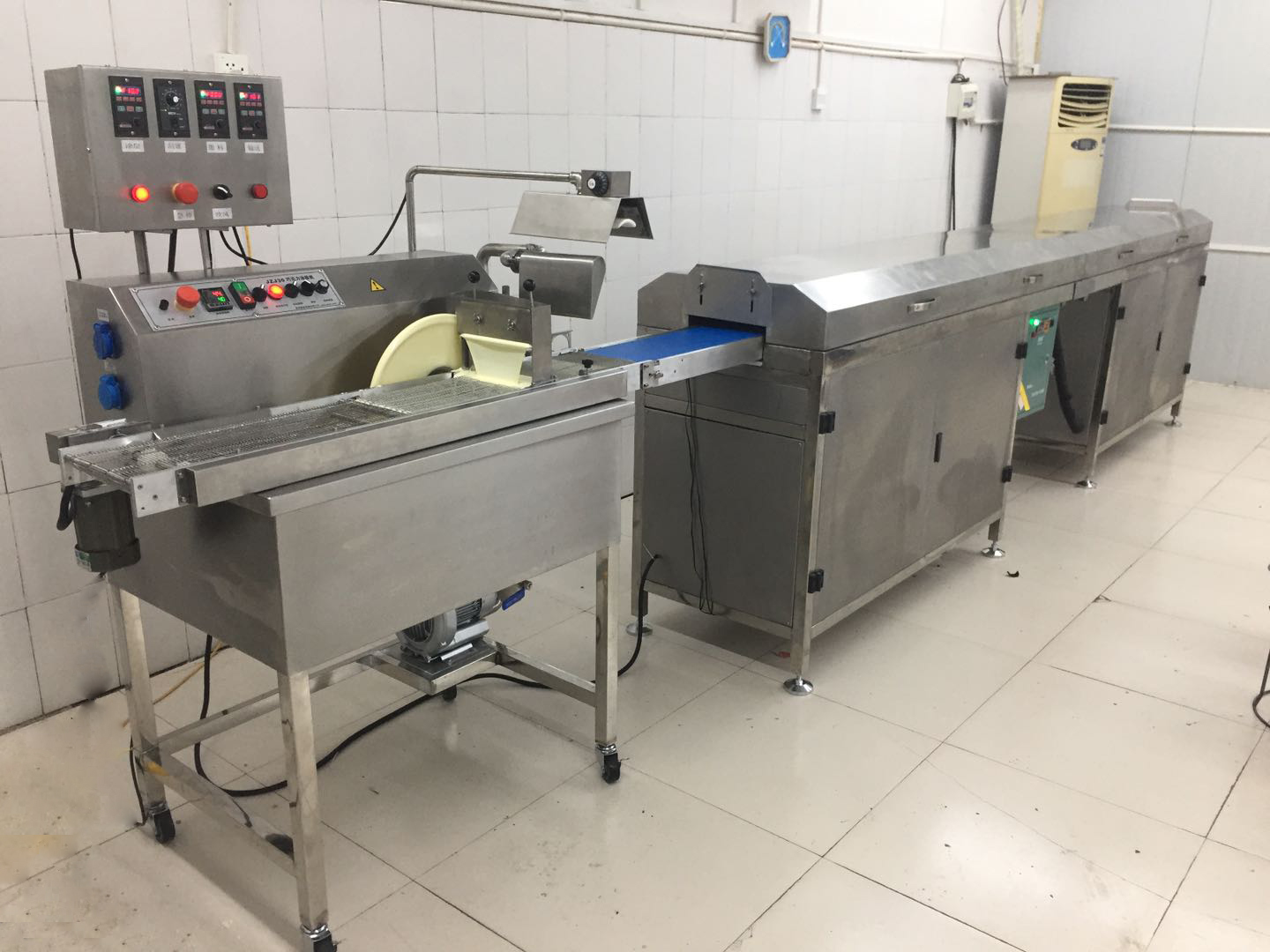

Machine pictures:

Our Service

1) Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for engineer's round flight ticket, accommodation and salary.

2) One year gurantee since the completion of commissioning service.

3) Auto CAD layout will be provided as client's workshop size.

4) English operation manual will be provided.

5) Full life after-sales service.

Video:

Please contact us freely if there are any interests!
