Mini Pet Food Pellet Twin Screw Extruder Machine For Lab Test
Introduction of Twin-screw mini extruder:
This twin-screw extruders hasve screw threads made of high grade
steel with a five-axis machining tool to reduce clearance and wear.
This twin screw extruder is equipped with PLC controllers and
high-level touch screen panels for manual or automatic operations.
The extruder’s operating parameters are input and displayed on the
touch panel.
Designed by CAD, the closely intermeshed screw elements have
excellent self-wiping characteristics, and can be interchanged with
each other easily.
Besides, twin-screw compounding extruder is installed with the
newly designed torque distribution system, high-precision grinding
of hardened gear teeth, and imported high-quality key bearings.
Main Features for Mini-lab extruder:
1. Higher Torque
Based on powerful R&D research departement, COWIN has
successfully increase the torque degree of gearbox from 5.5 T/A3 to
11.2 T/A3.
That means, for the same size extruder, you can get much more
output. Meanwhile, the energy is greatly decreased.
2. More Accurate
All the key parts including gears, shafts, screws and barrels are
processed by CNC. That will guarantee our machines a more stable
running condition. And the advanced installation of the gearbox is
our advantage to others.
3. Flexible Screw Configuration
With COWIN extruder, you can change the screw configuration for
different applications. That thanks to the flexible screw design,
it will help you very easily to do so.
4. Customized Design
COWIN firstly gives the service to customers who need special
design for their extruders based on their previous experience.
COWIN would like to invite customers to participate in the design
of the extruders. You can give your own idea and even can design by
yourself.
Technical parameter:
| Model | SR-24 |
| Capacity | 1-5kg/hr |
| Screw Diameter | 23.6mm |
| Barrel diameter | 24mm |
| Root diameter | 13.3mm |
| Diameter ratio | 1.77 |
| Center line space | 18.75mm |
| Aisle depth | 5.15mm |
| Screw rotary speed | Max 220rpm |
| Torque | 82Nm |
| Power | 10kw |
| Diemsnion | 1830x500x1400mm |

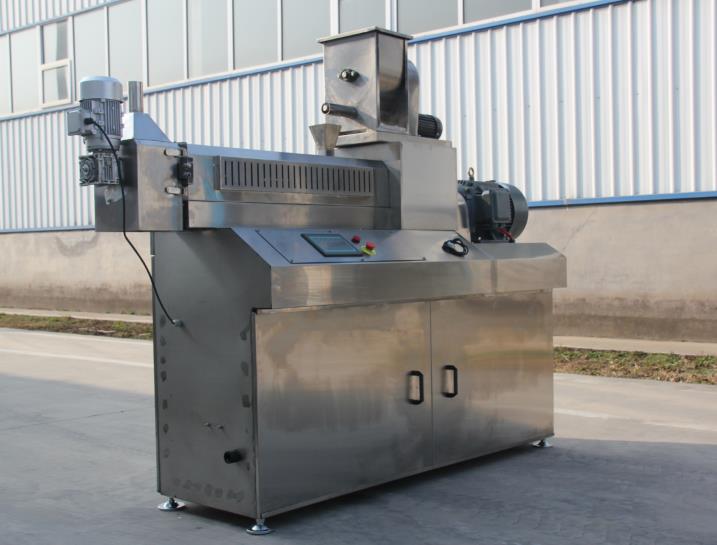

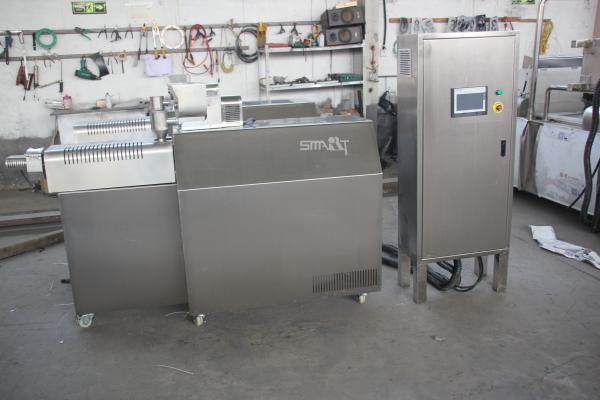

Machine pictures:
Video:
Pre-sales service:
1.Introducing in detail features and application of the products to
customer
2.Selecting economical and practical machine & equipment for
customer
3.Providing operation data of the related machine & equipment
4.Providing means of trial performance for customer
Sales service:
1.Recommending engineering conditions required for installation of
the machine & equipment
2.Communicating in time the manufacturing progress of the machine
with user
3.Providing assistance in technical conditions, screw combination
and barrel disposition needed for product
After-service:
1.Providing on the spot technical assistance in installation,
commissioning and training
2.Filing in detail customer's information
3.Providing long-term maintenance service and spare parts
4.Giving technical support to customer for developing new product
5.Providing free maintenance for a year
Machine package and delivery:
Any interest, please be free to contact us for detail quotation!
