PLC Control Cereal Rice Candy Fruit Bar Snack Food Making Machine
Cereal Rice Candy Fruit Bar Snack Food Making Machine
Introduction of Cereal Rice Candy Fruit Bar Snack Food Making
Machine
This machine is suitable for pressing forming for puffed cereal
such as rice ball, wheat ball, popcorn ball, rice bar, rice cake
and so on. The shapes can be round, cylindrical, square,
semi-circle, and triangular etc.
High technology servo electromagnetic system, which has the
characteristics of advanced design, automatic control, stable
operation, no impact and quiver.
Using food-level materials to design and fabricate mould and
hopper, which is safe and healthy.
Application of puffed rice cake machine:
This machine can make many cereal snacks according to customer
requirements. For example, ball, cake, bar, round bars, round ball,
round cake, square type.
It is the best choice for medium factory or which the formula
include starch syrup food, rice candy, rice crispy candy, peanut
candy, sunflower seed candy and sesame candy.
Process Procedure of Cereal Bar Production Line:
Roasting - Peeling - Cooking - Mixing - Molding and Cutting -
Packing
All the moulds and hoppers have been conducted with antistick
disposal.
The length of the cooling conveying links can be changed or cooling
fan can be equipped based as required to enhance the cooling
effect.
1.Grain puffing machine
Specially suitable for puffing and expanding various
coffee,rice,corn, barley, wheat,
bean,maize,sorghum,millet,peanut,sunflower seeds,sesame,Chinese
chestnut and other food's puffing,with crispy taste and lively
shape.
2.Candy cooking machine
This machine is made of stainless steel, and uses electricity, gas,
steam, heat transfer oils as heating energy. It has tilt able
discharging mechanism.
3.Thermostat not stick blender
This machine uses far infrared plate heating, heat evenly, barrel
food grade PP, stirringbetter.
Equipped with automatic temperature control system, temperature
regulation and more convenient. It's mainly used for the stirring
of the rice cake, egg Shao crisp, Mihua Tang, frozen rice and sugar
and other snack foods.
Parameter of Cereal Bar Production Line:
| Model and Name | Power(kw) | Capacity(kg/h) | Size(mm) |
| Rice puff Machine | 0.37 | 70 | 1420*900*1200 |
| Sugar Cooking Machine | 30 | 100 | 1200*1000*800 |
| Automatic Mixing Machine | 1.1 | 150 | 680*500*800 |
| Conveyor | 0.37 | 400 | 3200*600*1000 |
| SRC-65 Forming Machine | 3 | 200-300 | 11800*1800*1200 |

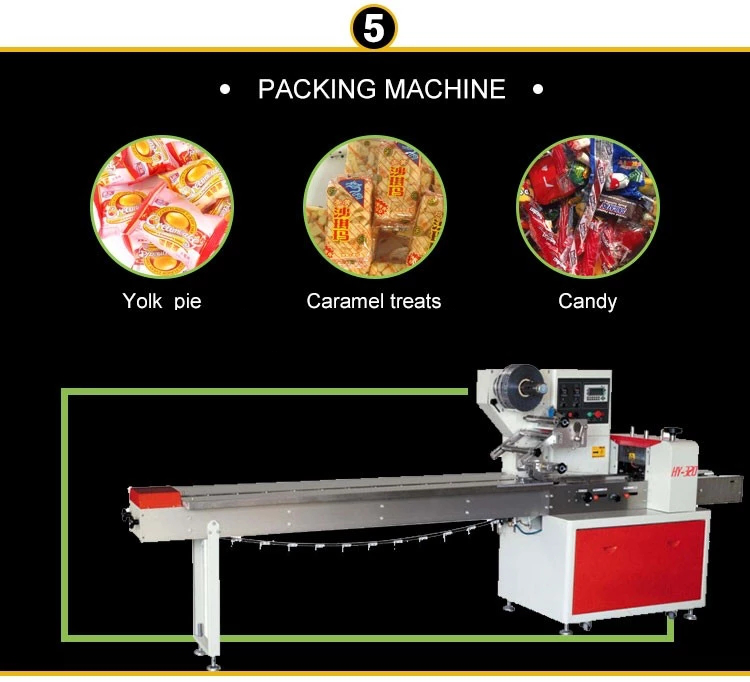

| 250 Packing Machine | 2.4 | 50 | 3700*670*1450 |
| Name | puffed rice candy bar forming machine |
| Capacity | 200-300 kg/h |
| Voltage | 380V |
| Power | 3kw |
| Weight | 500kg |
| Dimension | 5600*850*1400mm |

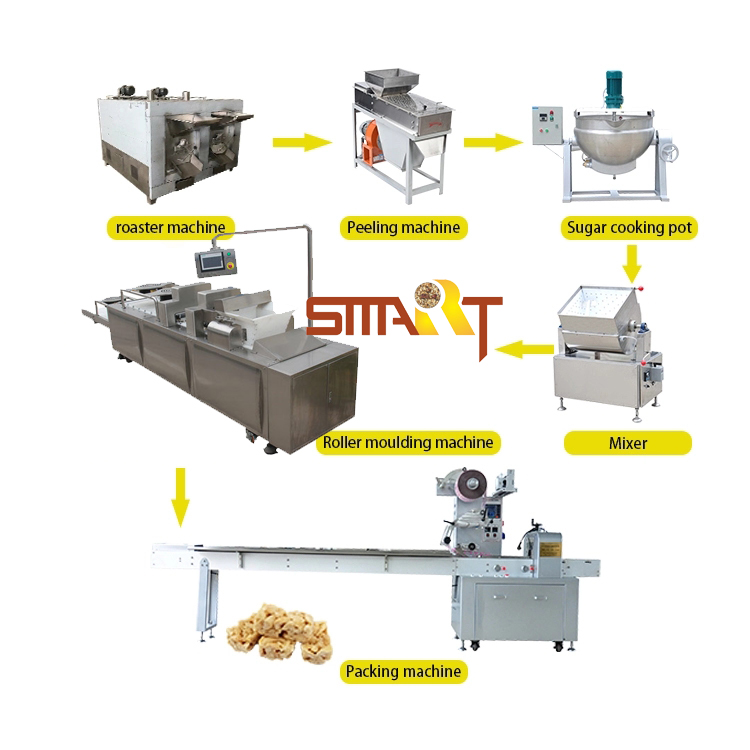

Machine pictures and production flow for snack bar making machine:
Package and delivery for cereal rice bar molding machine:
Snack bar machine test videos:
