Small Kurkure Cheetos Kukure Snack Making Machine Price
cheetos niknaks twist cheese curls maker
Introduction of Kurkure cheetos extruding machine line:
Kurkure/Cheetos are special extruded snacks, very crunchy and great
in taste. They are made by a special extrusion process.
The corn grits are moisturized in the flour mixer with water and
fed to the rotary head extruder.
In the extruder, due to the two rotary plates, the corn grits are
squeezed and twisted to curls shapes.
The cutting knives can cut into required lengths. The
Kurkure/Cheetos are fried in cooking oil or toasted in oven and
then cooled before flavoring. Seasoning is sprayed on the surface
to achieve different favorable tastes. Due to the delicious flavors
and nutrition, it is quite popular with consumers.
1. Raw materials: Corn Grits
2. Products: Kurkure/Cheetos/Nik Nak with Different Tastes
3. Capacity: 150KG/H
4. Flow Chart: Mixing—Extrusion—Separating—Frying/Baking— Flavoring
system
5.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can
make it according to customers' local voltage of different
countries.
6. Machines Materials: All the machines are made by food grade
stainless steel.
No | Machine | Application |
1 | Mixer | Mixed raw material(corn grits) |
2 | Screw conveyer | Send the raw material to the extruder |
3 | Kurkure extruder | Extruded the material by the win screw,only can produce kurkure |
4 | Hoister | Hoisting the product into separating drum |
5 | Separate drum | Making the product separate |
6 | Hoister | Hoisting the product into continuous fryer |

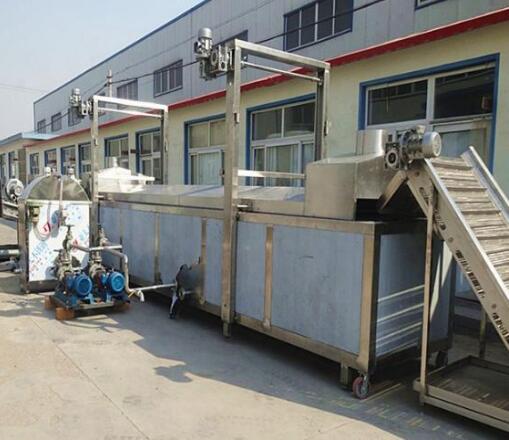

7 | Continuous fryer | Frying the product continuously |
8 | Vibrate de-oil machine | de-oiling the product |
9 | Hoiser | Hoisting the product into flavoring roller |
10 | Flavoring roller | Flavoring the product |
Details & Features:
1. Blower to ensure discharge products faster and unblocked,
2. Window on the Hopper to check the raw materials level and
quantity easily,
3. Vibrant Motor on the Hopper ensure feed raw materials fast and
successfully,
4. Inverters, Conductors and other electronic parts are from
World-famous Brands, like FUJI, LG, DELTA.
5. Main Motors are from SIEMENS(CHINA), ensure strong and excellent
performance.
Technical parameter:
| Model | Frying Type | Baking Type |
| Installed Power | 85 kw | 58 kw |
| Power Consumption | 65 kw | 40 kw |
| Production Capacity | 150 kg/h | 150 kg/h |
| Dimension | 20 x 2 x 2.5 m | 18 x 2 x 2.5 m |
Samples:
Packing and Delivery:
1.Outside package, fumigation free wooden case
2. Inner packing, stretch film
Delivery Detail:30 working days after order
Any interest about this production line, please be free to contact
us!
